| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
185 pcs
|
185 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AWG | |
| Cable Opening | |
| Coding | |
| Color | |
| Conductor Cross Section | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Surface Material | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Frequency of Connections | |
| Ingress Protection | |
| Insertion/Withdrawal Cycles | |
| Insulation Resistance | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Packaging Quantity | |
| Pollution Degree | |
| Primary Material | |
| Shell Finish | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Surge Voltage Category | |
| Termination | |
| Transmission Category | |
| Voltage Rating | |
| Volume Resistance |

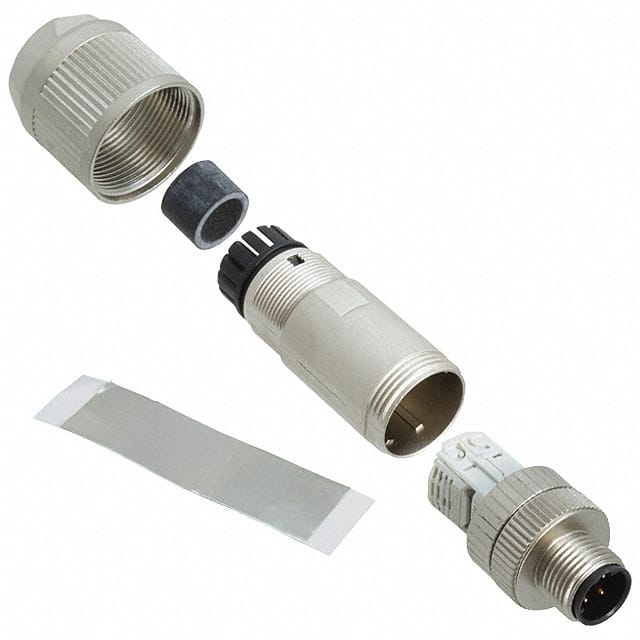

The Phoenix Contact 1543223 is a rugged M12 circular connector plug designed for industrial data transmission applications. It features a D-coded 4-position male pin configuration with a shielded brass shell and nickel finish, providing reliable EMI protection. The connector uses a QUICKON IDC fast connection system for tool-free termination of stranded conductors from 0.14 to 0.34 mm² (AWG 26-22).
Rated at 1.75A and 60V, this connector supports CAT5 and CAT5e transmission categories, making it suitable for Ethernet-based networks. With an IP67 ingress protection rating, it is dust-tight and protected against temporary immersion in water. The operating temperature range spans -40°C to 85°C, and the insulation resistance is ≥100 MΩ with a volume resistance of ≤5 mΩ.
The connector is designed for free-hanging (in-line) mounting and accepts cable diameters from 4 to 8 mm. It is rated for at least 100 insertion/withdrawal cycles and has a pollution degree of 3. The housing material is zinc die-cast with nickel-plated brass knurls, and the contact carrier is PA 66 with a UL94 V-0 flammability rating.
This connector has 4 positions.
The rated current is 1.75 A at 40°C.
The voltage rating is 48VAC and 60VDC.
The connector is designed for free hanging (in-line) mounting.
The connector has an IP67 ingress protection rating, meaning it is dust-tight and protected against temporary immersion in water.
The connector is D-coded, suitable for data transmission applications.
It uses IDC (Insulation Displacement Connection) termination, specifically the QUICKON fast connection system.
