| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Ambient Temperature (Operation) | |
| Automotive Grade | |
| Coding | |
| Color | |
| Connection Method | |
| Connector Type | |
| Contact Carrier Material | |
| Contact Finish | |
| Contact Material | |
| Contact Surface Material | |
| Current Rating (Amps) | |
| Degree of Protection | |
| Fastening Type | |
| Halogen Free | |
| Industrial Grade | |
| Ingress Protection | |
| Insulation Resistance | |
| Lead Style | |
| Length of the solder contacts | |
| Material Flammability Rating | |
| Material, Knurls | |
| Medical Grade | |
| Military Grade | |
| Minimum Order Quantity | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Packing Unit | |
| Pollution Degree | |
| Primary Material | |
| Rated Current at 40°C | |
| Rated Voltage | |
| SVHC Present | |
| Sealing Material | |
| Shell Finish | |
| Shell Material | |
| Shell Size | |
| Standards/Regulations | |
| Surge Voltage Category | |
| Termination | |
| Voltage Rating | |
| Volume Resistance |

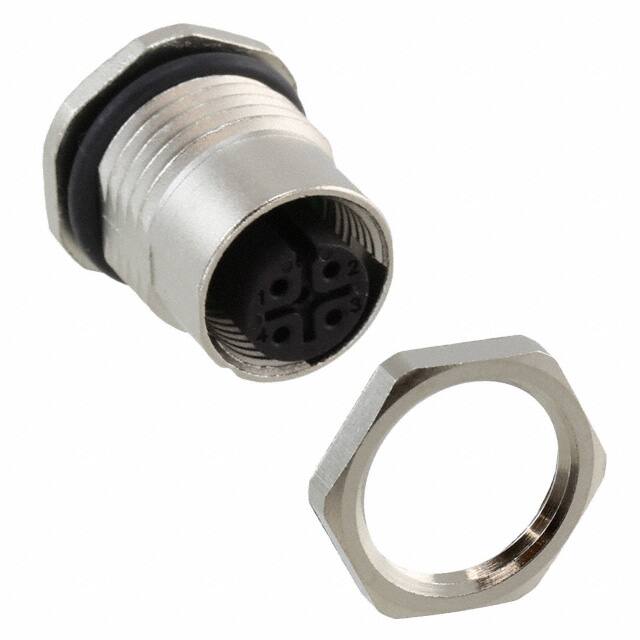

The Phoenix Contact 1542761 is a panel feed-through circular connector from the SACC-DSI series. It features a 5-position M12 female receptacle with A-coding and push-twist (SPEEDCON) fastening for quick and secure mating. The connector is designed for panel mounting with a bulkhead front side nut and uses solder pins for termination. The shell is made of zinc die-cast with a nickel finish, and the contacts are gold-plated copper alloy for reliable conductivity.
Electrically, the connector is rated for 4A at 60V and has a volume resistance of ≤3 mΩ and insulation resistance ≥100 MΩ. It operates over a temperature range of -25°C to 85°C and provides IP67 ingress protection against dust and water. The contact carrier is made of PA 66 with UL94 V-0 flammability rating, and the sealing material is NBR. The connector complies with M12 connector standard IEC 61076-2-101.
This connector is suitable for sensor/actuator applications in industrial automation, requiring rear mounting with a Pg9 thread. The solder pin length is 6mm, and the mounting type is panel mount with through-hole solder connections. The product is RoHS compliant and has a moisture sensitivity level of 1 (unlimited).
5 positions.
4A at 40°C.
60V.
Panel mount, through hole with bulkhead front side nut.
IP67 - dust tight and waterproof.
-25°C to 85°C.
A-coded (standard).
