| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| 1st Connector Gender | |
| 1st Connector Mounting Type | |
| 1st Connector Number of Positions | |
| 1st Connector Number of Positions Loaded | |
| 1st Connector Orientation | |
| 1st Connector Shell Size | |
| 1st Connector Type | |
| 2nd Connector Type | |
| AWG Signal Line | |
| Ambient Temperature (Operation) | |
| Assembly Configuration | |
| Cable Material | |
| Cable Type | |
| Cable Type (Datasheet) | |
| Coding | |
| Color | |
| Conductor Cross Section | |
| Conductor Material | |
| Conductor Resistance | |
| Conductor Structure Signal Line | |
| Connection Method | |
| Contact Carrier Material | |
| Contact Material | |
| Contact Surface Material | |
| Core Diameter Including Insulation | |
| Ingress Protection | |
| Insulation Resistance | |
| Insulation Resistance (Cable) | |
| Length | |
| Material Conductor Insulation | |
| Material, Knurls | |
| Minimum Order Quantity | |
| Mounting Type | |
| Nominal Voltage, Conductor | |
| Packing Unit | |
| Pollution Degree | |
| Rated Current | |
| Rated Voltage | |
| Sealing Material | |
| Shielding | |
| Standards/Regulations | |
| Status Display | |
| Surge Voltage Category | |
| Test Voltage, Conductor | |
| Thickness, Insulation | |
| Usage | |
| Volume Resistance | |
| Wire Colors |

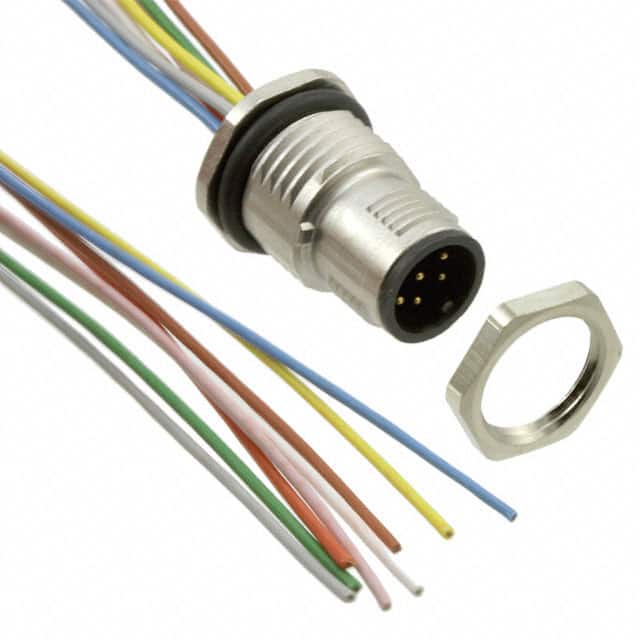

This Phoenix Contact 1542716 is a circular cable assembly designed for sensor/actuator connections in industrial environments. It features an M12 SPEEDCON male connector (A-coded) with 8 positions on one end and individual wire leads (0.5m, 24 AWG, 0.25 mm²) on the other. The connector is a panel feed-through type with rear mounting using Pg9 thread and a flat nut, suitable for panel mounting.
Electrical specifications include a rated current of 2A at 40°C, rated voltage of 30V, volume resistance ≤3 mΩ, and insulation resistance ≥100 MΩ. The cable is made of TPE (thermoplastic elastomer) with tin-plated copper litz wires, rated for 300V nominal and tested at 2000V AC. The assembly is unshielded and has an IP67 degree of protection, making it dust-tight and waterproof.
Mechanical characteristics include a contact material of CuZn with gold plating, contact carrier material PA 66, and a zinc die-cast, nickel-plated knurl. The cable jacket is TPE, and the wire colors are brown, blue, white, gray, pink, green, yellow, and red. The operating temperature range is -25°C to 85°C.
This assembly is ideal for industrial automation, control systems, and harsh environments requiring reliable connections. It is packaged individually, with a minimum order quantity of 1. Compliance with RoHS (unverified) and REACH (unaffected) is indicated.
The rated voltage is 30V DC.
The operating temperature range is -25°C to 85°C.
The assembly is listed as RoHS3 Compliant, but this status is unverified.
The cable length is 0.5m (1.64 feet).
The assembly has an IP67 rating, meaning it is dust-tight and waterproof.
The connector is A-coded (standard).
The rated current is 2A at 40°C.
