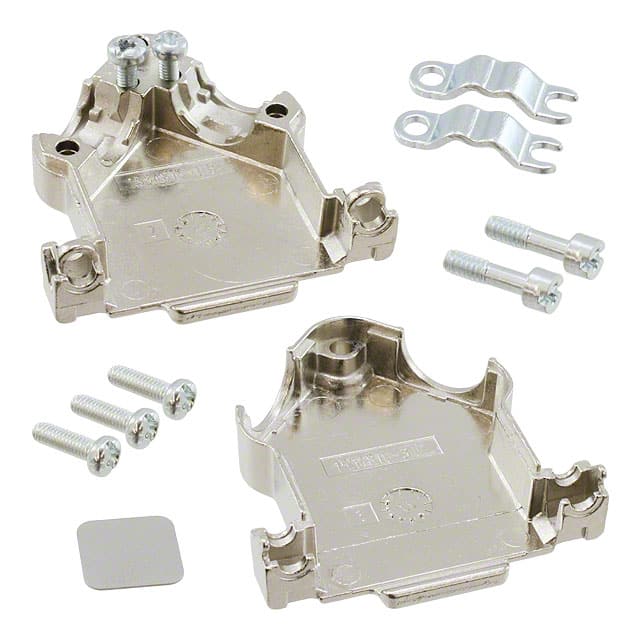

1534807-1 TE Connectivity 1534807-1 is a 15-position, shielded, two-piece D-Sub backshell with a 45° cable exit. Includes assembled hardware and cable clamp for round cables 4.8-11mm diameter.
Mfr Part #:

1534807-1

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 1534807-1 is a 15-position, shielded, two-piece D-Sub backshell with a 45° cable exit. Includes assembled hardware and cable clamp for round cables 4.8-11mm diameter.
✓ Total Stock: 600 pcs

1534807-1 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
600 pcs
On Request
600 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1534807-1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Accessory Type
Cable Exit
Cable Type
Features
Hardware
Housing Material
Material
Number of Positions
Shielding
View Similar Products (0)

1534807-1 Description

Short technical summary and product information.

The TE Connectivity 1534807-1 is a two-piece D-Sub backshell designed for 15-position connectors. It features a 45° cable exit angle to facilitate routing in tight spaces. The backshell is shielded, providing EMI protection for signal integrity. Constructed from galvanized zinc (GD-Zn) and steel hardware, it offers robust mechanical support. The included cable clamp accommodates round cables with diameters from 4.8mm to 11mm. Mating screws (4-40 UNC) and assembly hardware are pre-installed for quick installation. This backshell is part of the HD20 series and is packaged in a minigrip bag. It is RoHS3 compliant and has an MSL of 1 (unlimited).

1534807-1 Quick Information

Product Type: D-Sub Backshell
Series: HD20
Canonical Name: TE Connectivity HD20 Series D-Sub Backshell, 15 Position, 45° Cable Exit, Shielded, Two-Piece
Subcategory: Backshell

1534807-1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant

1534807-1 Features

  • 15-position D-Sub backshell accessory.
  • 45° cable exit for compact routing.
  • Shielded design for EMI protection.
  • Galvanized zinc housing with steel hardware.
  • Cable clamp for 4.8-11mm round cables.

1534807-1 Applications

  • Used in industrial control and automation systems.
  • Ideal for data communication equipment.
  • Suitable for test and measurement devices.
  • Applied in telecommunications infrastructure.

1534807-1 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this D-Sub backshell support?

It supports 15 positions.

What is the cable exit angle of the 1534807-1?

The cable exit angle is 45°.

Is this backshell shielded?

Yes, it is shielded.

What cable diameter range does the cable clamp support?

The cable clamp supports round cables with diameters from 4.8mm to 11mm.

What material is the housing made of?

The housing is made of galvanized zinc (GD-Zn), with steel hardware.

Does the backshell include mounting hardware?

Yes, it includes assembly hardware and a cable clamp. Mating screws are 4-40 UNC.

What is the overall length of the 1534807-1?

The overall length is 39.5 mm with a tolerance of -0.05 mm.
