| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
240,000 pcs
|
240000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Lead Style | |
| Mounting Type | |
| SVHC Present | |
| Style | |
| Terminal Type | |
| Termination | |
| Wire Gauge |

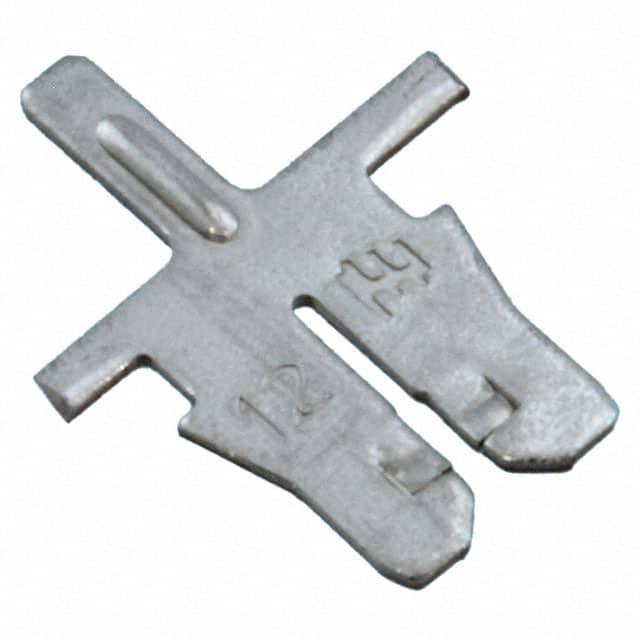

The TE Connectivity 1534686-1 is an IDC (Insulation Displacement Connector) terminal designed for magnetic wire applications. It accepts 23-26 AWG wire gauge and terminates via a PCB post, making it suitable for direct soldering to printed circuit boards. The terminal is classified under style 300.
This component is intended for use in connectors and interconnects within the magnetic wire connector category. It is RoHS3 compliant and REACH unaffected, supporting environmental and regulatory requirements for many electronic assemblies.
The PCB post termination provides a reliable mechanical and electrical connection when soldered to a board. The IDC design allows for quick wire termination without stripping insulation, reducing assembly time.
23-26 AWG
PCB Post
IDC Terminal
300
