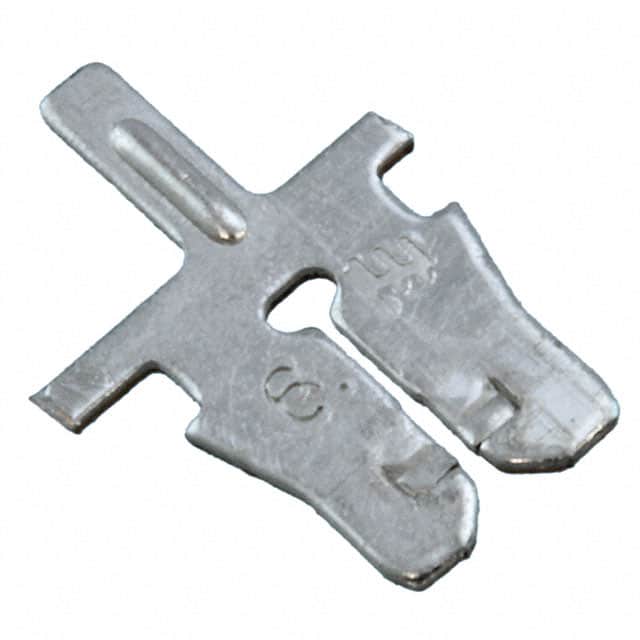

The TE Connectivity 1534685-1 is an IDC Terminal designed for magnetic wire connectors. It uses a PCB Post termination and accepts wire gauges from 26 to 30 AWG. The terminal is of Style 300. This component is intended for connecting magnet wire to a printed circuit board, providing a reliable insulation displacement connection. It is listed as RoHS3 compliant and REACH unaffected, with an MSL of 1 (unlimited).
With a PCB Post termination, this terminal can be soldered directly into a PCB, simplifying the assembly process. Its IDC design allows fast termination without stripping the wire. The supported wire range makes it suitable for fine-gauge magnetic wires commonly used in coils, transformers, and solenoids.
Design engineers should note that this part has an unverified lead time and placeholder tariff codes that should be reviewed. The part is also known under DigiKey cross-references A117853TR-ND (reel) and A117853CT-ND (cut tape).
The 1534685-1 supports 26-30 AWG wire.
It is an IDC Terminal.
RoHS status is listed as RoHS3 Compliant (unverified).
