| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AC Outlets | |
| Approval Agency | |
| Features | |
| Height | |
| Housing Material | |
| Ingress Protection | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Overload Protection | |
| Power Rating | |
| Storage Temperature | |
| Tape & Reel | |
| Termination Style | |
| Type | |
| Width |

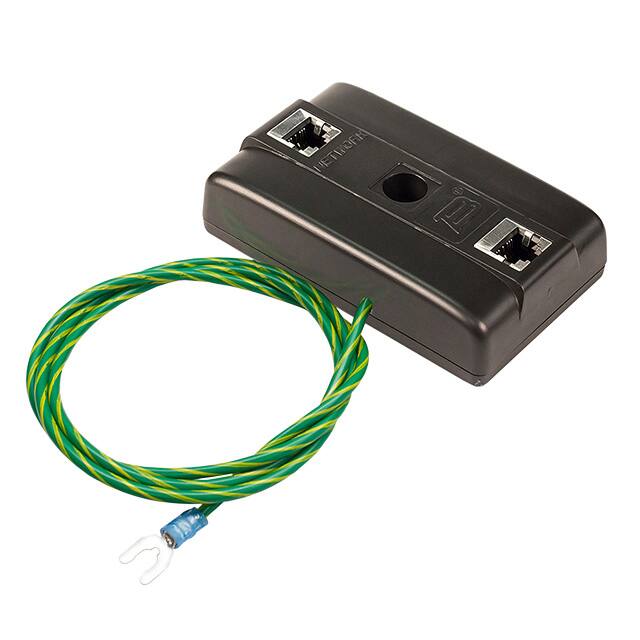

The Bourns 1530-1D-W is a commercial PoE Ethernet Surge Protector from the 1530-1 Series. It utilizes state-of-the-art Gas Discharge Tube (GDT) and TBU® High-Speed Protector technology to offer robust protection for Ethernet connections.
This surge protector is compatible with 10/100/1000 Mbps data rates and supports Class 4 power levels up to 35 watts at 57 volts. Key electrical specifications include a low impulse voltage let-through of less than 60V and a low impulse current let-through of less than 1A. It has a typical capacitance of 10 pF line-to-line at 1 MHz and a surge response time of less than 1 μs.
The unit is designed for DIN rail mounting and features a flame-retardant, high-impact resistant plastic enclosure. It operates within a temperature range of -40°C to +65°C and has an Ingress Protection rating of IP20. The product is UL Listed per E153537 Vol 2 Sec 2, ensuring compliance with safety standards.
Applications include highly exposed Ethernet installations, telecommunication systems, indoor industrial environments, surveillance cameras, and remote power and communication setups. The protector is transparent to Mode A or Mode B data transmission.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The power rating is 35 W.
The operating temperature range is -40 to +65 °C.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1.
The surge let-through voltage is less than 60 V.
It supports DIN rail mounting.
It is compatible with 10/100/1000 Mbps data rates.
