152B 6.35mm panel mount stereo phone jack, female, 3 conductors, solder eyelet termination, unshielded.
Mfr Part #:

152B

Available from 1 distributors
Mfr Name: Conxall/Switchcraft
Conxall/Switchcraft
6.35mm panel mount stereo phone jack, female, 3 conductors, solder eyelet termination, unshielded.
✓ Total Stock: 100 pcs

152B Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
HMB Electronics LLC ✓
Non-Authorised Inventory information
100 pcs
On Request
100 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

152B Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actual Diameter
Connector Type
Features
Gender
Industry Recognized Mating Diameter
Internal Switch(s)
Lead Style
Mounting Type
Number of Positions
SVHC Present
Shielding
Signal Lines
Termination
Termination Style
View Similar Products (0)

152B Description

Short technical summary and product information.

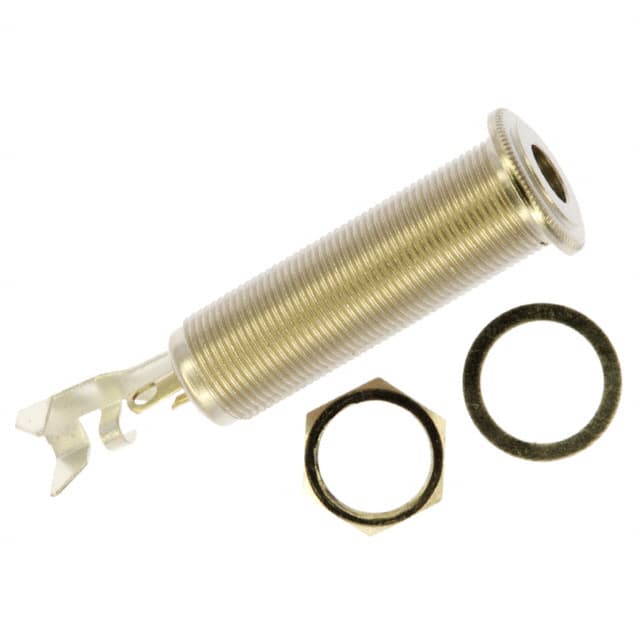

The 152B from Conxall/Switchcraft is a 6.35mm (1/4") panel mount stereo phone jack. This female connector features 3 conductors and 3 contacts for stereo (TRS) signal lines. It does not contain an internal switch.



Termination is via solder eyelet(s), and the connector is unshielded. Mounting hardware and thread lock features are included for secure panel installation. The industry recognized mating diameter is 6.35mm (0.250", 1/4") - Headphone.



This connector is suitable for audio applications requiring a robust panel-mount stereo jack with solder termination.

152B Quick Information

Product Type: Audio Connector
Canonical Name: 6.35mm Panel Mount Stereo Phone Jack, Female, 3 Conductor, Solder Eyelet
Subcategory: Audio Connectors

152B Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

152B Features

  • 6.35mm panel mount stereo phone jack.
  • Female connector with 3 conductors.
  • Solder eyelet termination style.
  • Unshielded design for audio use.
  • Includes mounting hardware and thread lock.

152B Applications

  • Panel-mount audio input/output jacks.
  • Stereo headphone or line-level connections.
  • Professional audio equipment and instruments.

152B FAQs

7 frequently asked questions generated from this part’s specifications.
What is the connector type of the 152B?

Phone Jack

What is the gender of the 152B?

Female

How many conductors and contacts does the 152B have?

3 Conductors, 3 Contacts

What is the signal line configuration?

Stereo (3 Conductor, TRS)

Does the 152B have an internal switch?

Does Not Contain Switch

What is the mating diameter of the 152B?

6.35mm (0.250", 1/4") - Headphone

What is the mounting type of the 152B?

Panel Mount
