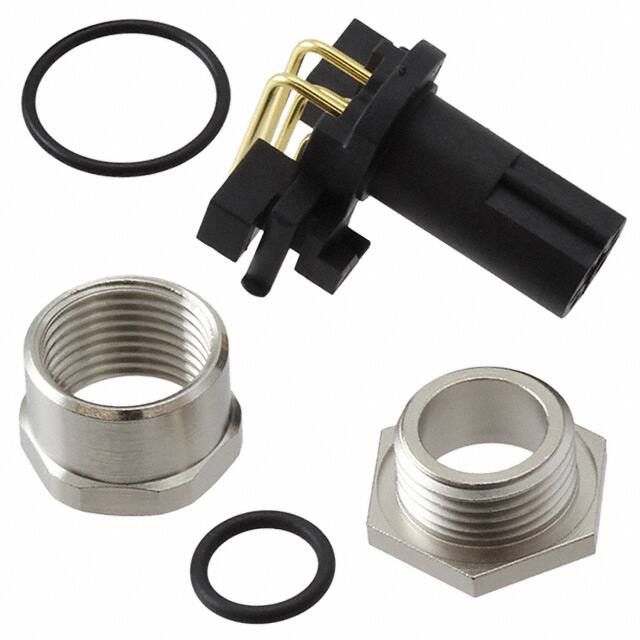

1527870 Circular connector receptacle with 5 female sockets, gold contact finish, solder termination. Rated for 4A, 125V, IP67 protection.
Mfr Part #:

1527870

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Circular connector receptacle with 5 female sockets, gold contact finish, solder termination. Rated for 4A, 125V, IP67 protection.
✓ Total Stock: 16 pcs

1527870 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
16 pcs
On Request
16 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1527870 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Connector Type
Contact Finish
Current Rating
Current Rating (Amps)
Fastening Type
Features
Ingress Protection
Lead Style
Material Flammability Rating
Mounting Feature
Mounting Type
Number of Positions
Operating Temperature
Orientation
Primary Material
Shell Finish
Shell Material
Shell Size
Termination
Voltage Rating
View Similar Products (0)

1527870 Description

Short technical summary and product information.

The Phoenix Contact 1527870 is a circular connector receptacle designed for reliable connections in industrial environments. It features 5 female socket contacts with gold finish for corrosion resistance and reliable signal transmission. The connector is rated for 4A current and 125V voltage, suitable for low-power signal and control applications. It offers IP67 ingress protection, making it dust-tight and waterproof for harsh conditions. The mounting type is panel mount with through-hole, right-angle solder termination, and a bulkhead rear side nut for secure installation. The shell is made of brass with nickel finish, and the shell size is M12-5. The operating temperature range is -40°C to 85°C. The connector includes board guide and board lock features for easy alignment and secure mating. It is RoHS3 compliant and has a UL94 HB flammability rating for the insulator material.

1527870 Quick Information

Product Type: Circular Connector Receptacle
Canonical Name: Phoenix Contact 1527870 - Circular Connector Receptacle, Female Sockets, 5 Position, Gold Contact Finish, Solder Termination, M12-5 Shell Size, IP67
Subcategory: Circular Connector Assemblies

1527870 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Level 1 (Unlimited)
REACH Status: Non-Compliant

1527870 Features

  • 5 female socket contacts with gold finish.
  • Rated for 4A current and 125V voltage.
  • IP67 dust-tight and waterproof protection.
  • Panel mount with right-angle solder termination.
  • M12-5 shell size with threaded fastening.

1527870 Applications

  • Used in industrial sensor and actuator connections.
  • Suitable for factory automation control panels.
  • Ideal for harsh environment signal transmission.
  • Common in M12 circular connector systems.

1527870 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 1527870 have?

5 positions.

What is the current rating?

4A.

What is the voltage rating?

125V.

What is the mounting type?

Panel mount, through hole, right angle with bulkhead rear side nut.

What is the ingress protection rating?

IP67 (dust tight and waterproof).

What is the operating temperature range?

-40°C to 85°C.

What is the contact finish?

Gold.
