| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Mated Stacking Heights | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Style | |
| Termination |

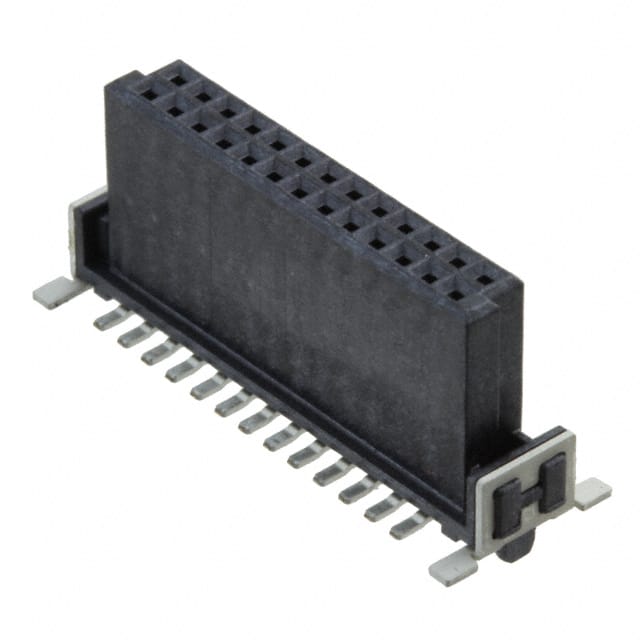

The Harting 15220262601000 is a 26 position, 2 row receptacle with a 1.27mm pitch and 1.27mm row spacing. It features female socket contacts with a tin finish and is designed for surface mount soldering termination. The connector supports board-to-board or cable styles with a push-pull fastening type.
This receptacle includes board guide, pick and place, and solder retention features for automated assembly. The insulation is black with a height of 9.05mm and supports mated stacking heights from 10.8mm to 13.8mm. The housing material has a UL94 V-0 flammability rating and the operating temperature range is -55°C to 125°C.
26 positions in 2 rows.
1.27mm pitch with 1.27mm row spacing.
Surface mount with solder termination.
-55°C to 125°C.
UL94 V-0.
