| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Mated Stacking Heights | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Style | |
| Termination |

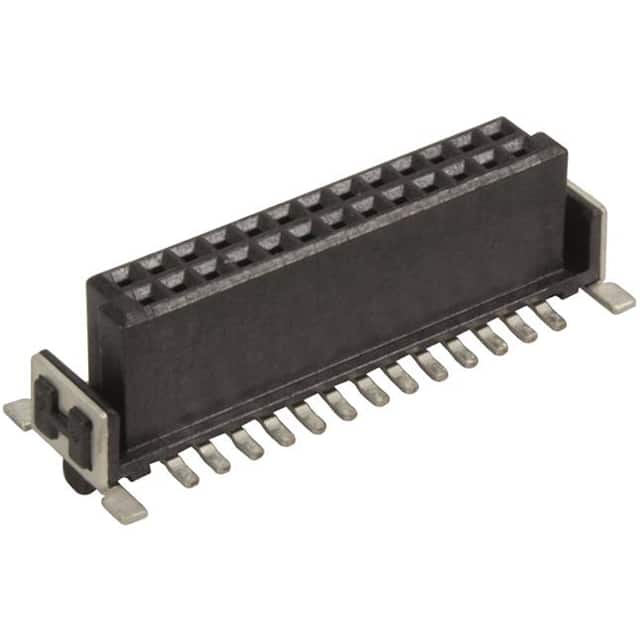

The Harting 15210202601333 is a HAR-FLEX straight female receptacle designed for high-density board-to-board or cable connections. It features 20 positions arranged in 2 rows with a 1.27mm pitch, making it suitable for compact PCB layouts. The receptacle is surface mount with solder termination and includes board guide, pick and place, and solder retention features for reliable assembly. The push-pull fastening type allows easy mating and unmating, and the mated stacking heights range from 8mm to 11mm. The insulation is black with a height of 6.25mm, and the contact finish is tin. The operating temperature range is -55°C to 125°C, and the material is rated UL94 V-0 for flammability. This part is RoHS3 compliant (unverified), MSL 1 unlimited, and REACH unaffected.
20 positions.
1.27mm (0.050").
Surface mount.
-55°C to 125°C.
8mm to 11mm.
Board guide, pick and place, solder retention.
