| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination |

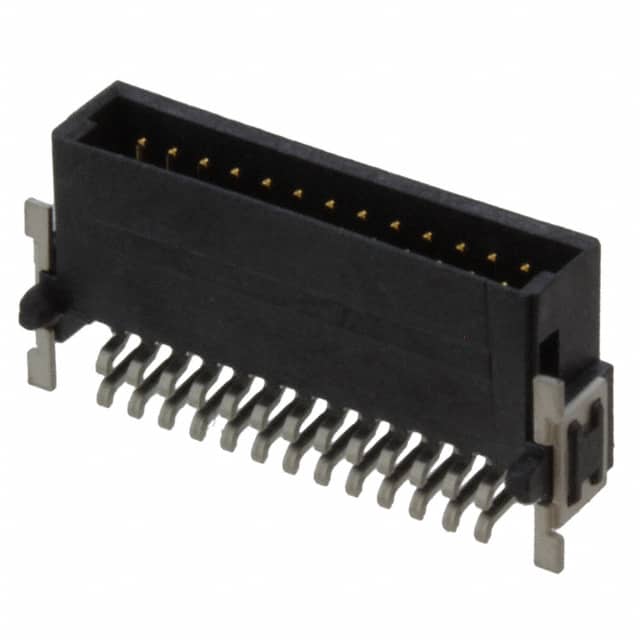

The Harting 15150262601000 is a 26-position, 1.27mm pitch, shrouded header designed for board-to-board or cable applications. It features a 2-row configuration with all positions loaded, and a 4-wall shroud for robust mating alignment. The header is surface mounted with a right-angle orientation, making it suitable for compact, space-constrained PCB designs.
Constructed with a black liquid crystal polymer (LCP) insulator rated UL94 V-0, the header offers reliable insulation and flammability resistance. The contacts are made of copper alloy with a tin finish, providing good conductivity and solderability. The part includes board guide and solder retention features for secure placement during assembly.
Operating over a temperature range of -55°C to 125°C, this header is suitable for a variety of industrial and commercial environments. The push-pull fastening type ensures simple mating and unmating. The 1.27mm row spacing matches the pitch, enabling dense interconnection layouts.
The pitch is 1.27mm (0.050").
It has 26 positions in 2 rows, all positions loaded.
Surface mount, right angle.
-55°C to 125°C.
Tin.
Yes, it is shrouded with a 4-wall design.
Liquid Crystal Polymer (LCP) with UL94 V-0 flammability rating.
