| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
19 pcs
|
19 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination |

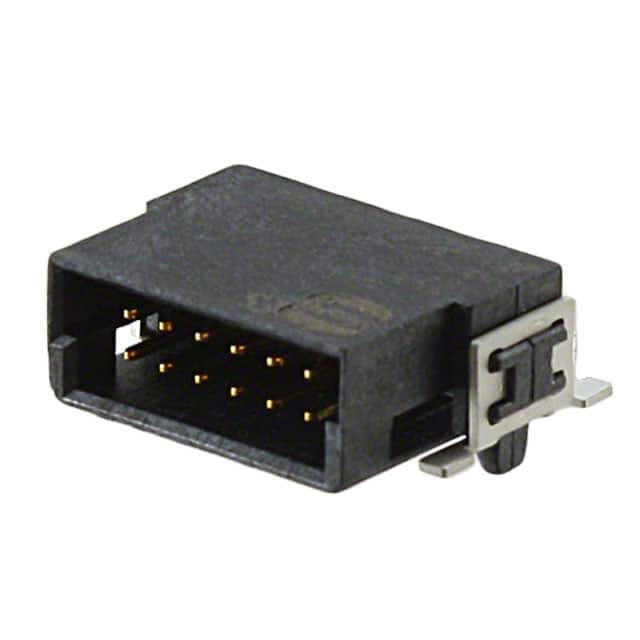

The Harting 15150122601000 is a 12-position, 2-row shrouded header designed for board-to-board or cable applications. The connector utilizes a 1.27mm (0.050") pitch with a row spacing of 1.27mm, providing a compact interconnection solution.
All positions are loaded with male pins made of copper alloy with a tin contact finish. The insulation is made from black liquid crystal polymer (LCP) with a UL94 V-0 flammability rating. The connector includes integrated board guide and solder retention features for improved mechanical stability.
The mounting style is surface mount right angle with solder termination. It operates over a wide temperature range from -55°C to 125°C. The push-pull fastening type simplifies mating and unmating procedures.
It has 12 positions arranged in 2 rows.
The pitch is 1.27mm (0.050") with 1.27mm row spacing.
It is surface mount right angle with solder termination.
The operating temperature range is -55°C to 125°C.
