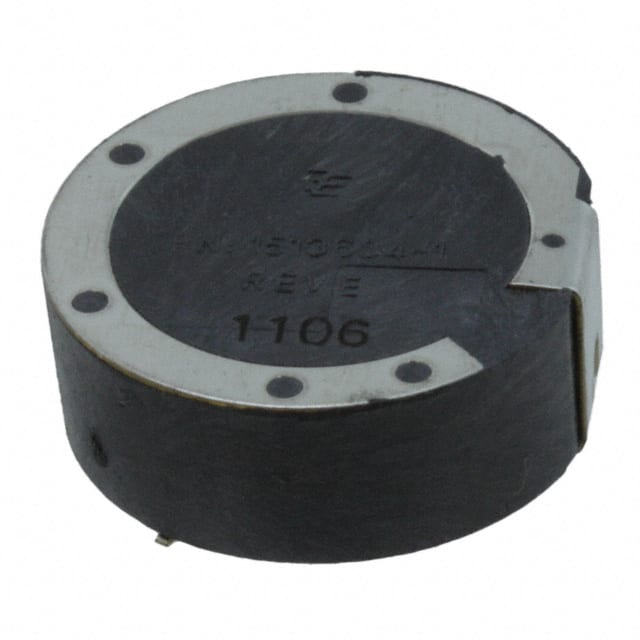

1513634-1 by TE Connectivity AMP Connectors

1513634-1 by TE Connectivity AMP Connectors

RF ANT 1.575GHZ PUCK SOLDER SMD

DistiPart #
Manufacturer Name TE Connectivity AMP Connectors
Manufacturer Part #

1513634-1

Manufacturer Standard Lead Time 12 Weeks
EDA/CAD Models
Are you a distributor of this part? Register now to receive RFQ from buyers.
Download Datasheet
Other Documents
Estimated Stock: 4612 *Can dispatch immediately
Estimated Price $1.74
Estimated Lead time 12 Weeks
Minimum Order Quantity: 1

Specifications of 1513634-1

Product Attribute
Attribute Value
Select Attribute
Category
RF Antennas
Manufacturer
TE Connectivity AMP Connectors
Mounting Type
Surface Mount
Number of Bands
1
Antenna Type
Puck
Applications
GPS
VSWR
3
Frequency Group
UHF (1GHz ~ 2GHz)
Frequency (Center
1.575GHz
Frequency Range
1.565GHz ~ 1.585GHz
Height (Max)
0.238" (6.05mm)
RF Family
Navigation
Termination
Solder
Gain
0dBi
Power
10 W
View All Features
DistyParts - Get Multiple quotes in one request

Product Compliance of 1513634-1

Attributes Description
CNHTS 98765434567
USHTS 45678987654
TARIC 67898765567
ECCN 3A991

Documents of 1513634-1

Datasheet
  Datasheet

Environmental & Export Classifications of 1513634-1

Attributes Description
RoHS Status RoHS3 Compliant
Moisture Sensitivity Level (MSL) 1 Unlimited
REACH Status REACH Unaffected
ECCN 3A991
HTSUS 9876.21.0030

Additional Resources of 1513634-1

Attributes Description
Other Names RMCF 1/16S 0 R RMCF0402ZT0R00-ND RMCF1/16S0RTR-ND RMCF1/16S0RCT RMCF0402ZT0R00CT RMCF1/16S0RDKR-ND RMCF1/16S0RDKR
Standard Package 10,000
