| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
180 pcs
|
180 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Connector Type | |
| Contact Finish | |
| Contact Finish (Solder Tails) | |
| Contact Finish (Wiping Area) | |
| Contact Finish Thickness | |
| Contact Finish Thickness (Wiping Area) | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (All Lines) | |
| Current Rating (Amps) | |
| Fastening Type | |
| Industrial Grade | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Lifecycle Status | |
| Material Flammability Rating | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Packaging Type | |
| Pitch | |
| Process Rating (Maximum Temperature) | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Withstanding Voltage |

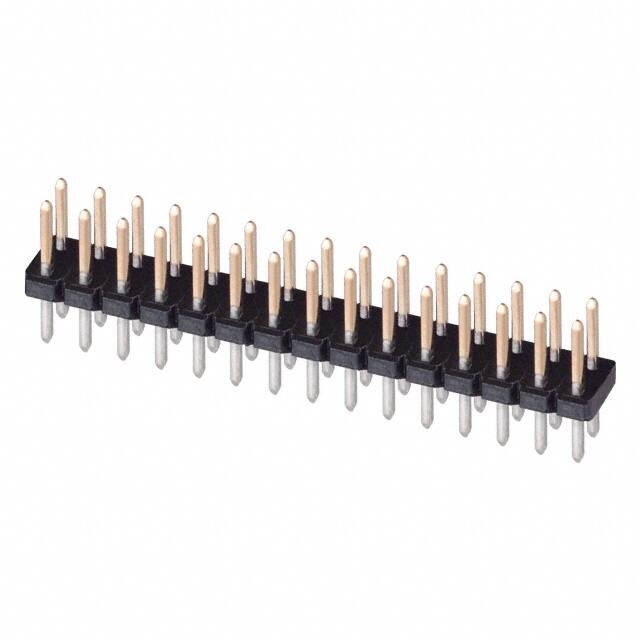

The 3M 151230-8422-RB is a 30 position, 2mm pitch, through hole pin strip header from the 1512 series. It features male pins with a gold wiping area (30 μ" gold over 50 μ" nickel underplating) and matte tin solder tails. The insulator is black glass-filled LCP rated UL94 V-0, and the operating temperature range is -55°C to +105°C.
This unshrouded header supports board-to-board or cable connections with a push-pull fastening type. The current rating is 1 A when all lines are powered, with higher ratings for fewer adjacent lines. The insulation resistance exceeds 1×10^9 Ω at 250 VDC, and the withstanding voltage is 500 VRMS at sea level. The process rating is 260°C maximum per J-STD-020C, with MSL 1 (unlimited).
The 151230-8422-RB is packaged in bulk and has a through hole mounting style with solder termination. The contact material is copper alloy with a gold wiping area and matte tin solder tails. The insulator is black glass-filled LCP with UL94 V-0 flammability rating. The operating temperature range is -55°C to +105°C. This part is obsolete per the manufacturer.
The 151230-8422-RB has 30 positions, all loaded, arranged in 2 rows.
The pitch is 2.00 mm (0.079 inches) with the same row spacing of 2.00 mm.
The current rating is 1 A when all lines are powered. According to the datasheet, it supports 3.5 A for 1 line and 1.75 A for 6 adjacent lines.
This header uses through hole mounting with solder termination.
The operating temperature range is -55°C to 105°C.
The part is listed as RoHS3 Compliant but this status is unverified. 3M directs to 3M.com/regs for compliance information.
The contact wiping area has a gold finish (30 μ" or 0.76 μm gold average) and the solder tails have a matte tin finish (200-300 μ" or 5.08-7.62 μm).
