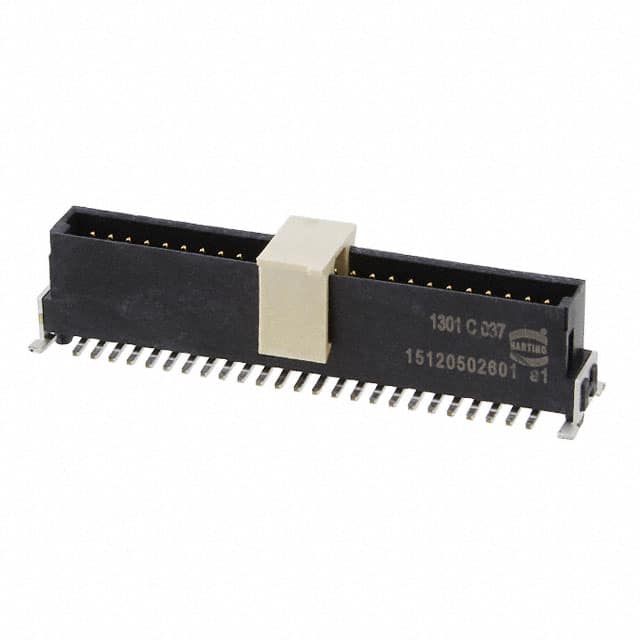

15120502601000 Harting 15120502601000 is a 50-position, 2-row shrouded header with 1.27mm pitch, designed for surface mount soldering.
Mfr Part #:

15120502601000

Available from 1 distributors
Mfr Name: Harting
Harting
Harting 15120502601000 is a 50-position, 2-row shrouded header with 1.27mm pitch, designed for surface mount soldering.
✓ Total Stock: 96 pcs

15120502601000 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
96 pcs
On Request
96 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

15120502601000 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Length
Contact Material
Contact Shape
Contact Type
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
SVHC Present
Shrouding
Storage Temperature
Style
Tape & Reel
Termination
View Similar Products (0)

15120502601000 Description

Short technical summary and product information.

The Harting 15120502601000 is a 50-position, 2-row shrouded header (male pin) connector designed for board-to-board or cable applications. It features a 1.27mm pitch and row spacing, with all positions loaded. The contacts are made of copper alloy with a tin finish, and the insulator is black liquid crystal polymer (LCP) rated UL94 V-0. The connector is fully shrouded with 4 walls and uses a push-pull fastening type. It is surface mount compatible with solder termination and includes features such as board guide, pick and place, and solder retention for automated assembly. The operating temperature range is -55°C to 125°C.

15120502601000 Quick Information

Product Type: Header, Male Pins
Series: har-flex
Canonical Name: Harting 15120502601000 - 50 Position Shrouded Header, Surface Mount, 1.27mm Pitch
Subcategory: Shrouded Header

15120502601000 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

15120502601000 Features

  • 50 positions in 2 rows with 1.27mm pitch.
  • Shrouded 4-wall design for mating alignment.
  • Surface mount with solder termination.
  • Tin-plated copper alloy contacts.
  • LCP insulator rated UL94 V-0.

15120502601000 Applications

  • Board-to-board interconnects in compact electronics.
  • Cable-to-board connections in industrial systems.
  • Automated pick-and-place assembly lines.

15120502601000 FAQs

5 frequently asked questions generated from this part’s specifications.
How many positions does the Harting 15120502601000 have?

50 positions, all loaded, in 2 rows.

What is the pitch of this header?

1.27mm (0.050") pitch with 1.27mm row spacing.

What is the mounting type?

Surface mount with solder termination.

What is the operating temperature range?

-55°C to 125°C.

What is the insulation material and flammability rating?

Black liquid crystal polymer (LCP) rated UL94 V-0.
