| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
720 pcs
|
720 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Insertion Force (Latch Engaged) | |
| Contact Length | |
| Contact Material | |
| Contact Resistance (Low Level) | |
| Contact Retention to Housing (Latch Engaged) | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Max) | |
| Durability (Tin Plating) | |
| Fastening Type | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Insulation Resistance | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Packaging Type | |
| Peg Insertion Force in PCB | |
| Peg Retention Force in PCB | |
| Pitch | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating (max) |

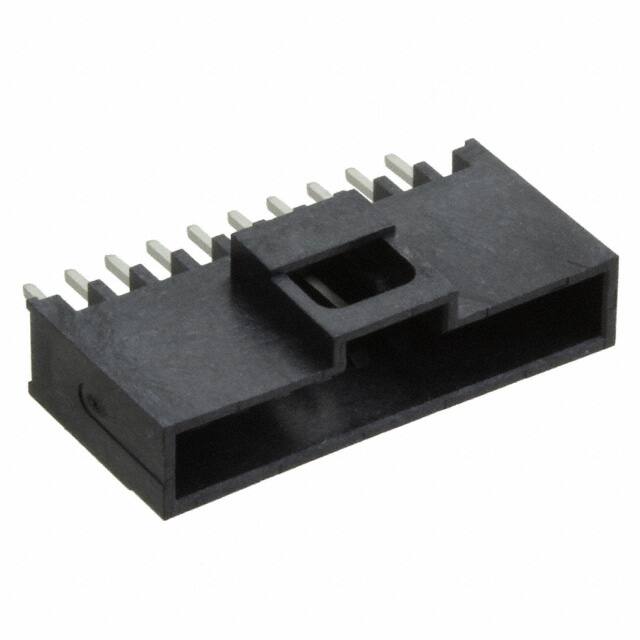

The Molex 1510634010 is a Milli-Grid series single-row header connector designed for board-to-cable/wire applications. It features 10 positions with a 2mm pitch, through-hole mounting, and a shrouded 4-wall design with an integral positive latch for secure mating. The connector is rated for 2.5A and 125VAC, with tin-plated copper alloy contacts (2.5µm plating thickness). The insulation is black liquid crystal polymer (LCP) with UL94 V-0 flammability rating. Operating temperature ranges from -40°C to +70°C. Packaging is in tubes. This connector is suitable for data communications, high-end computing, telecommunications, consumer appliances, and industrial infrastructure. The positive lock ensures easy unmating while maintaining a reliable connection. The Milli-Grid series offers various solder tail lengths and plating options for design flexibility.
10 positions.
2.00mm (0.079 inches).
2.5A.
125VAC.
Through hole.
-40 to +70°C.
Copper alloy with tin plating.
