| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
280 pcs
|
280 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Bundle Diameter Max | |
| Bundle Diameter Min | |
| Color | |
| Fixation Method | |
| Halogen Free | |
| Length | |
| Material | |
| Material Flammability Rating | |
| Minimum Tensile Strength | |
| Mounting Hole Diameter | |
| Mounting Type | |
| Opening Size | |
| Operating Temperature | |
| Package Quantity | |
| Panel Hole Size | |
| Plenum Rating | |
| Tape & Reel | |
| Type | |
| Type Attributes | |
| UL Listed | |
| UV Resistant | |
| Use Conditions | |
| Width |

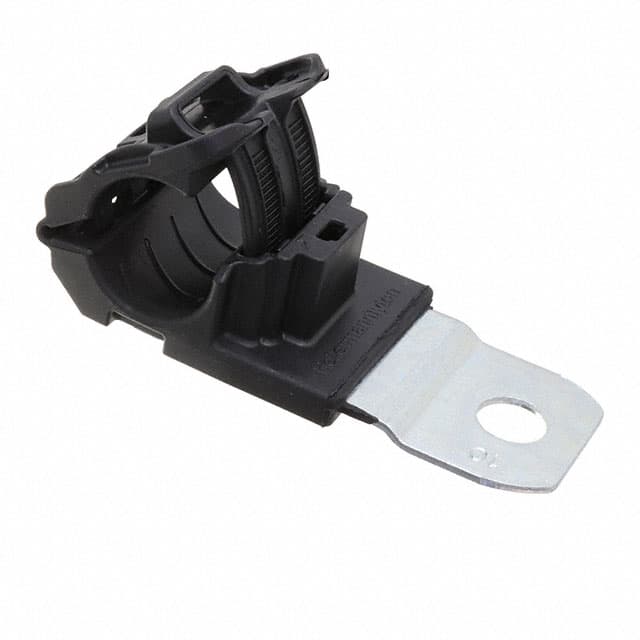

The HellermannTyton 151-03037 is a ratchet P-clamp designed for securing cable bundles with diameters from 0.50" to 0.77" (12.7 mm to 19.5 mm). It features a 180° short configuration and a mounting hole diameter of 0.405" (10.29 mm) for screw mounting. The clamp is made from polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) with a zinc-plated steel insert, providing long-term durability for indoor and outdoor use.
Key specifications include a minimum tensile strength of 445 N, an operating temperature range of -40°C to +105°C, and a flammability rating of UL94 HB. The one-piece ratchet closure design allows for easy installation and adjustment. The clamp is halogen-free and UV resistant, with a plenum rating of AH-2.
This ratchet P-clamp is suitable for securing cable bundles in a variety of applications, including automotive, rail, aerospace, and industrial equipment. The screw mounting method provides a secure attachment to panels or structures.
-40°C to +105°C
Yes, RoHS3 compliant.
0.50" to 0.77" (12.7 mm to 19.5 mm).
Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) with zinc-plated steel insert.
0.405" (10.29 mm).
Yes, it is UV resistant and rated for indoor and outdoor use.
445 N (100 lbf).
