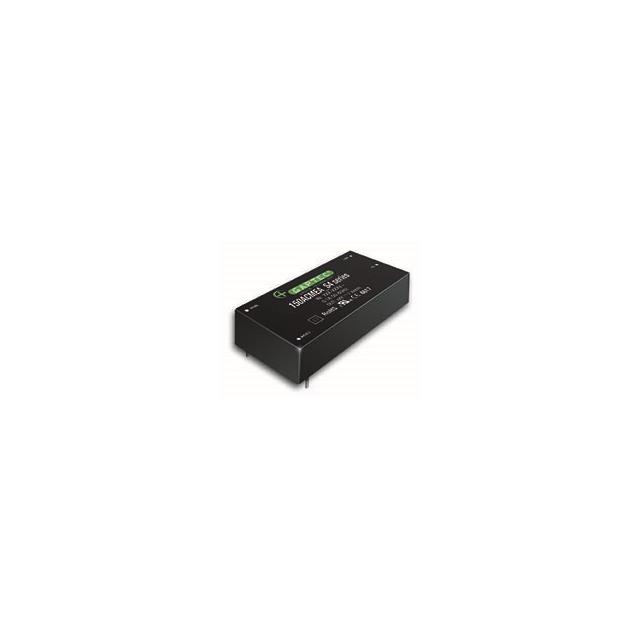

The GAPTEC Electronic 150ACMEA_48S4 is an enclosed AC DC converter designed for commercial and medical applications. It provides a 150W output with a single 48V output voltage and a maximum current of 3.125A.
Key electrical specifications include a wide input voltage range of 90-264 VAC, high efficiency of 93.5%, and precise regulation with line regulation at ±0.1% and load regulation at ±1%. Features such as adjustable output, Power Factor Correction (PFC), and remote On/Off enhance its versatility.
This converter operates within a temperature range of -30°C to 70°C with derating. It is mounted via through-hole method and comes in a 7-DIP Module package. The unit is certified by CB, CE, and UL, meeting standards like 60601-1 and 60950-1, making it suitable for demanding ITE and medical environments.
90 to 264 VAC.
48V.
3.125A.
150W.
93.5%.
-30°C to 70°C with derating.
7-DIP Module with through-hole mounting.
