| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
35,000 pcs
|
35000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Gender | |
| Insulation | |
| Mounting Type | |
| Tab Length | |
| Tab Thickness | |
| Tab Width | |
| Tape & Reel | |
| Terminal Type | |
| Termination | |
| Termination Style | |
| Wire Gauge |

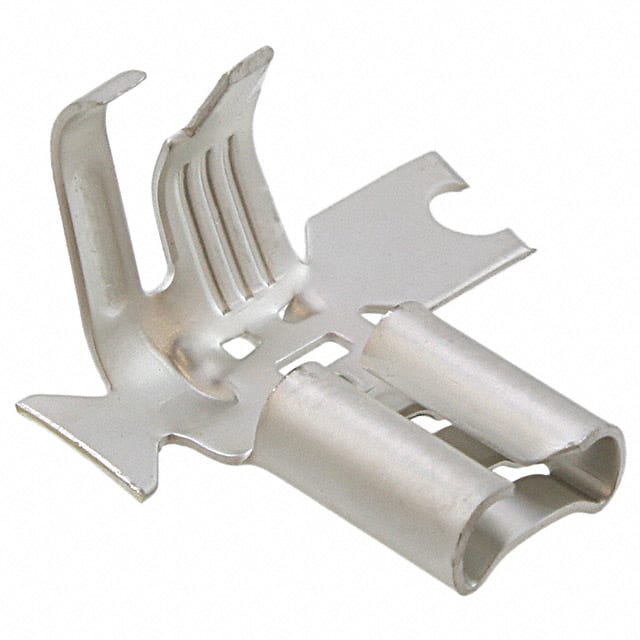

The TE Connectivity 150699-2 is a non-insulated female quick connect receptacle designed for wire-to-tab connections. It accepts 16-20 AWG wire and uses a reliable crimp termination. The contact is made of brass with a tin plating for good conductivity and corrosion resistance.
The terminal features an angled 90° flag design, allowing for low-profile connections in tight spaces. The tab dimensions are 0.187" (4.75mm) width, 0.032" (0.81mm) thickness, and 0.250" (6.35mm) length. This part is free-hanging (in-line) or right-angle mounting, suitable for quick disconnect applications.
Commonly used in automotive, appliance, and industrial wiring, this quick connect provides a secure and repeatable connection. The non-insulated design is suitable for applications where insulation is not required or where additional heat shrink insulation is applied.
Free hanging (in-line) or right angle.
16-20 AWG.
Tab width 0.187" (4.75mm), thickness 0.032" (0.81mm), length 0.250" (6.35mm).
Non-insulated.
Brass contact with tin plating.
Crimp termination.
Female.
