150154K250EB

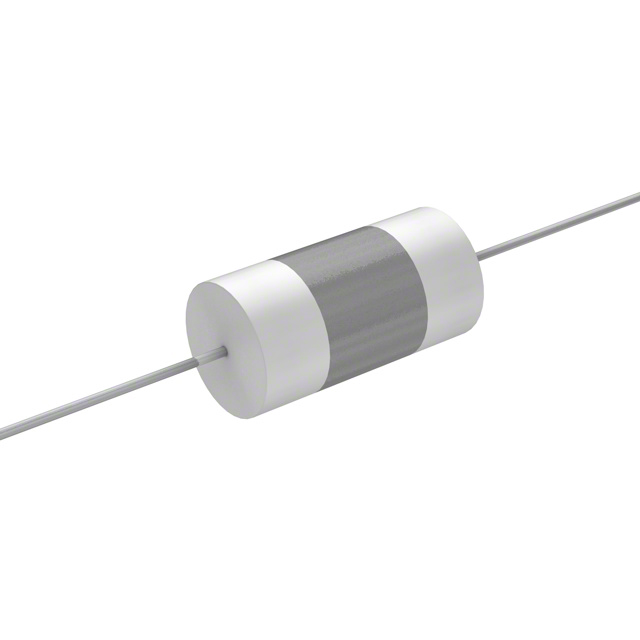

The 150154K250EB is a Type 150 axial leaded metallized polyester film capacitor manufactured by Cornell Dubilier Electronics (CDE). It offers a capacitance of 0.15 µF with a tolerance of ±10% and a rated DC voltage of 250 V. The capacitor operates over a temperature range of -55°C to +125°C, with linear derating to 50% rated voltage at 125°C. Key electrical characteristics include a maximum leakage current of 10 µA at 250 VDC after 3 minutes, a dissipation factor of 0.008 (0.8%) at 1 kHz and 25°C, and a minimum insulation resistance of 30,000 MΩ. The dielectric withstand voltage is 400 V for 2 seconds. Self inductance is limited to 1 nH max per mm of lead and body length.

The capacitor features a non-inductive wound construction with a flame retardant outer wrap and epoxy end fill meeting UL94V-0. It is packaged in an axial leaded through-hole form factor with tinned copper leads (per datasheet) and is available in bulk or on tape and reel with a standard package quantity of 800 pieces. This general purpose capacitor is designed for blocking, bypass, decoupling, smoothing, and some timing applications.
