| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Opening | |
| Coding | |
| Color | |
| Conductor Cross Section (AWG) Max | |
| Conductor Cross Section (AWG) Min | |
| Conductor Cross Section (Stranded) Max | |
| Conductor Cross Section (Stranded) Min | |
| Connector Type | |
| Contact Carrier Material | |
| Contact Finish | |
| Contact Material | |
| Current Rating | |
| Current Rating (Amps) | |
| External Cable Diameter | |
| Fastening Type | |
| Features | |
| Grip Body Material | |
| Industrial Grade | |
| Ingress Protection | |
| Insulation Resistance | |
| Knurl Material | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Pack Quantity | |
| Pollution Degree | |
| Primary Material | |
| Rated Current at 40°C | |
| Rated Voltage | |
| Sealing Material | |
| Shell Finish | |
| Shell Material | |
| Shell Size | |
| Standards/Regulations | |
| Surge Voltage Category | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating | |
| Volume Resistance |

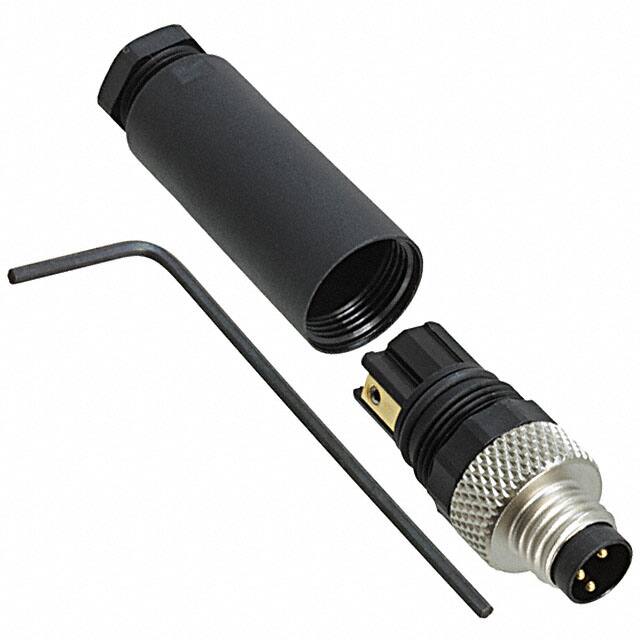

The Phoenix Contact SACC-M 8MS-3CON-M-SW (order number 1501252) is a 3-position male sensor/actuator connector with an M8 shell size. It features a threaded coupling mechanism for secure mating and a screw termination for field wiring. The connector is rated for 4A at 40°C and 60V (48VAC, 60VDC).
The connector is constructed with a nickel-plated brass shell and knurl, gold-plated copper alloy contacts, and a PBT grip body. It accommodates stranded conductors from 0.14 mm² to 0.5 mm² (26 AWG to 20 AWG) and cables with an outer diameter of 3.5 mm to 5 mm. The IP67 ingress protection rating ensures dust-tight and waterproof operation in harsh environments.
The connector complies with IEC 61076-2-104 for M8 connectors and is rated for pollution degree 3 and surge voltage category II. It operates in temperatures from -40°C to 85°C. The materials are rated UL94 HB for flammability. The packaging is a single piece.
3 positions.
4A at 40°C.
48VAC, 60VDC.
Free hanging (in-line).
IP67 - dust tight and waterproof.
Screw connection.
26 AWG to 20 AWG (0.14 mm² to 0.5 mm²) stranded.
