| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Chip Technology | |
| Color | |
| Configuration | |
| Continuous Forward Current | |
| Current | |
| ESD Threshold/ Human Body Model | |
| Emitting Color | |
| Halogen Free | |
| Height (Max) | |
| Junction Temperature | |
| Lens Color | |
| Lens Size | |
| Lens Style | |
| Lens Transparency | |
| Lens Type | |
| Millicandela Rating | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Peak Forward Current | |
| Power Dissipation | |
| Reverse Current | |
| Spectral Bandwidth | |
| Storage Temperature | |
| Supplier Device Package | |
| Viewing Angle | |
| Voltage | |
| Wavelength |

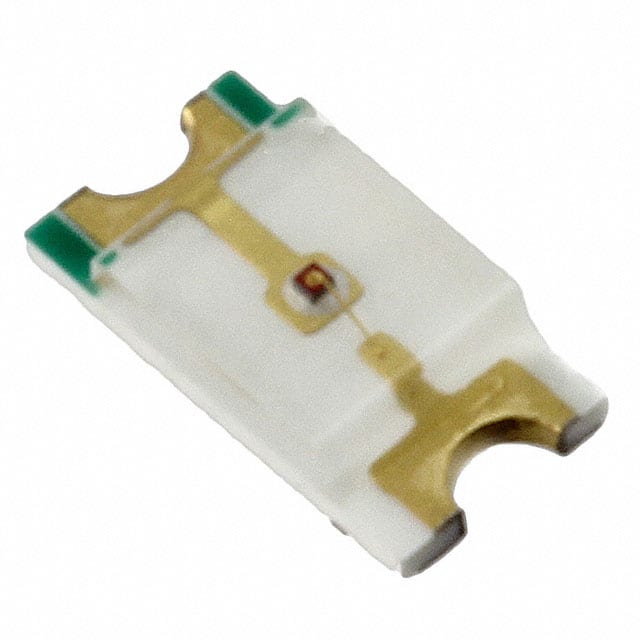

This Würth Elektronik 150120YS75000 is a yellow, clear lens, 1206 SMD chip LED. It utilizes AlInGaP chip technology and emits light with a peak wavelength of 595nm and a dominant wavelength of 590nm.
The LED has a typical luminous intensity of 120 mcd at 20 mA and a typical forward voltage of 2.4 V. The viewing angle is 140°.
Designed for surface mounting, this component comes in a 1206 (3216 Metric) package with dimensions of 3.20mm L x 1.60mm W and a maximum height of 0.69mm. The operating temperature range is -40°C to +85°C.
This LED is RoHS3 compliant and Halogen Free, making it suitable for various general electronic equipment applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The emitting color is Yellow.
This LED is supplied in a 1206 (3216 Metric) package.
The operating temperature range is -40°C to +85°C.
Yes, this LED is RoHS3 Compliant.
The typical luminous intensity is 120 mcd at 20 mA.
The typical forward voltage is 2.4 V at 20 mA.
The viewing angle is 140°.
