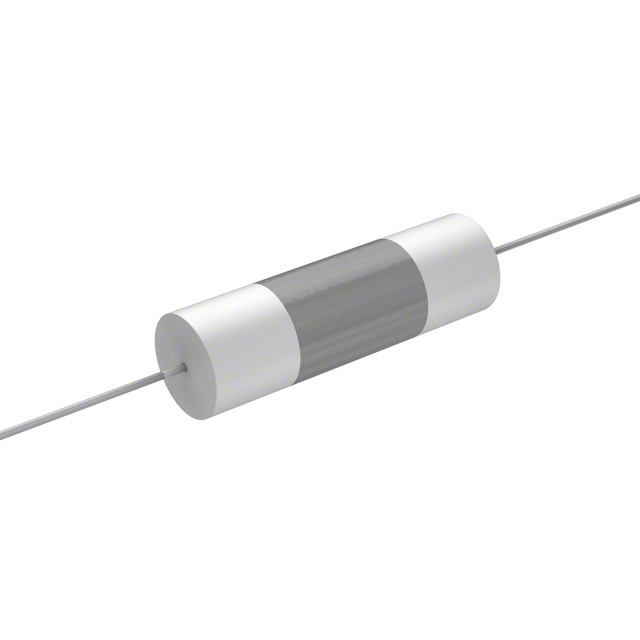

150104K630FE The 150104K630FE is a 0.1 µF, ±10%, 630 Vdc axial leaded metallized polyester film capacitor from Cornell Dubilier's Type 150 series.
Mfr Part #:

150104K630FE

Available from 1 distributors
Mfr Name: Cornell Dubilier Electronics (CDE)
Cornell Dubilier Electronics (CDE)
The 150104K630FE is a 0.1 µF, ±10%, 630 Vdc axial leaded metallized polyester film capacitor from Cornell Dubilier's Type 150 series.
✓ Total Stock: 6,400 pcs

150104K630FE Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
6,400 pcs
On Request
6400 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

150104K630FE Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Capacitance
Capacitance Range
Dielectric Material
Dissipation Factor
Insulation Resistance
Lead Style
Mounting Type
Operating Temperature
Tape & Reel
Termination
Termination Style
Tolerance
Voltage Rating
View Similar Products (0)

150104K630FE Description

Short technical summary and product information.

The Cornell Dubilier Type 150 150104K630FE is a metallized polyester film capacitor with a capacitance of 0.1 µF and a tolerance of ±10%. It is rated for 630 Vdc and operates over a temperature range of -55°C to +125°C, with linear derating to 50% rated voltage at 125°C.



This axial leaded capacitor features a non-inductive wound construction and is housed in a flame retardant wrap and fill package. The epoxy end fill meets UL94V-0, and the outer wrap meets UL510. It is designed for through-hole mounting with tinned copper leads.



Typical applications include blocking, bypass, decoupling, smoothing, and some timing circuits. The part is available in bulk or on tape and reel for automatic insertion.

150104K630FE Quick Information

Product Type: Film Capacitor
Series: Type 150
Canonical Name: Cornell Dubilier Type 150 Axial Leaded Metallized Polyester Film Capacitor, 0.1 µF, ±10%, 630 Vdc
Subcategory: Axial Leaded Film Capacitor

150104K630FE Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

150104K630FE Features

  • Metallized polyester film dielectric construction.
  • Rated for 630 Vdc operation.
  • Axial leaded through-hole package.
  • Flame retardant wrap and fill meets UL510.
  • Non-inductive wound design.

150104K630FE Applications

  • Suitable for blocking and bypass circuits.
  • Used in decoupling and smoothing applications.
  • Ideal for general purpose timing circuits.

150104K630FE FAQs

5 frequently asked questions generated from this part’s specifications.
What is the capacitance and tolerance of the 150104K630FE?

The capacitance is 0.1 µF with a tolerance of ±10%.

What is the voltage rating of this capacitor?

The rated voltage is 630 Vdc.

What dielectric material is used in the 150104K630FE?

The dielectric material is metallized polyester.

What is the operating temperature range?

The operating temperature range is -55°C to +125°C.

What is the package style of this capacitor?

The package is axial leaded, through-hole mount.
