| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,218 pcs
|
2218 pcs | On Request | 1 | On Request | On Request | 25+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Chip Technology | |
| Color | |
| Continuous Forward Current | |
| Current | |
| Dominant Wavelength | |
| ESD Threshold/ Human Body Model | |
| Emitting Color | |
| Forward Voltage | |
| Halogen Free | |
| Height (Max) | |
| Junction Temperature | |
| Lens Color | |
| Lens Size | |
| Lens Style | |
| Lens Transparency | |
| Lens Type | |
| Luminous Intensity | |
| Millicandela Rating | |
| Mounting Type | |
| Operating Temperature | |
| Peak Forward Current | |
| Peak Wavelength | |
| Power Dissipation | |
| Reverse Current | |
| Reverse Voltage | |
| Spectral Bandwidth | |
| Storage Conditions (@ for single parts) | |
| Storage Conditions (in original packaging) | |
| Supplier Device Package | |
| Thermal Resistance | |
| Viewing Angle | |
| Voltage | |
| Wavelength |

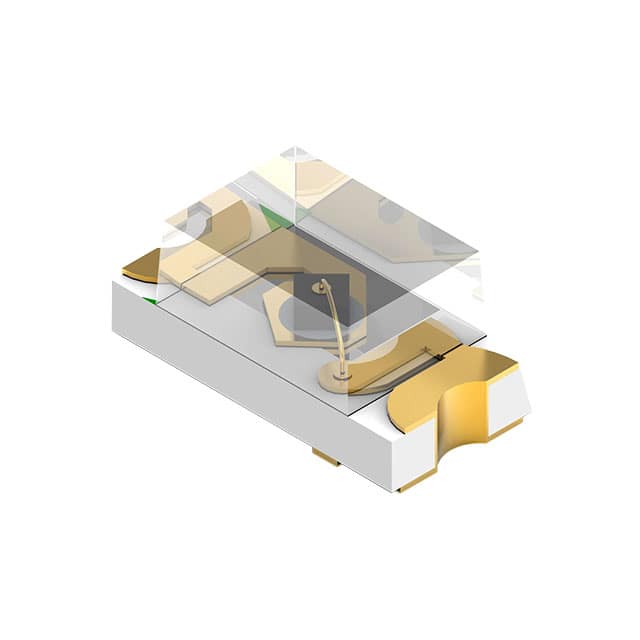

This Würth Elektronik 150060GS75003 is a surface-mount, mono-color chip LED designed for general electronic equipment. It emits a green light with a peak wavelength of 515nm and a dominant wavelength between 515nm and 530nm.
The LED features a waterclear lens and a flat top, rectangular lens style. It operates with a continuous forward current of 20mA and has a forward voltage typically around 3.2V. The luminous intensity is rated at 1600mcd (typical), with a broad viewing angle of 140°.
Packaged in a compact 0603 (1608 Metric) SMT case measuring 1.60mm L x 0.80mm W, this LED is suitable for automated assembly processes. Its operating temperature range is -40°C to +100°C, and it meets RoHS3, REACH, and Halogen Free compliance standards.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -40°C to +100°C.
This LED is supplied in the 0603 (1608 Metric) package.
The typical luminous intensity is 1600mcd at 20mA.
The viewing angle is 140°.
Yes, this LED is RoHS3 compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
