| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,100 pcs
|
8100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,397 pcs
|
1397 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request | |
|
1,284 pcs
|
1284 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,284 pcs
|
1284 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Configuration | |
| Current | |
| Dimensions | |
| Height (Max) | |
| Lens Color | |
| Lens Size | |
| Lens Style | |
| Lens Transparency | |
| Millicandela Rating | |
| Mounting Type | |
| Operating Temperature | |
| Peak Forward Current | |
| Power Dissipation | |
| Reverse Current | |
| Reverse Voltage | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Viewing Angle | |
| Voltage | |
| Wavelength |

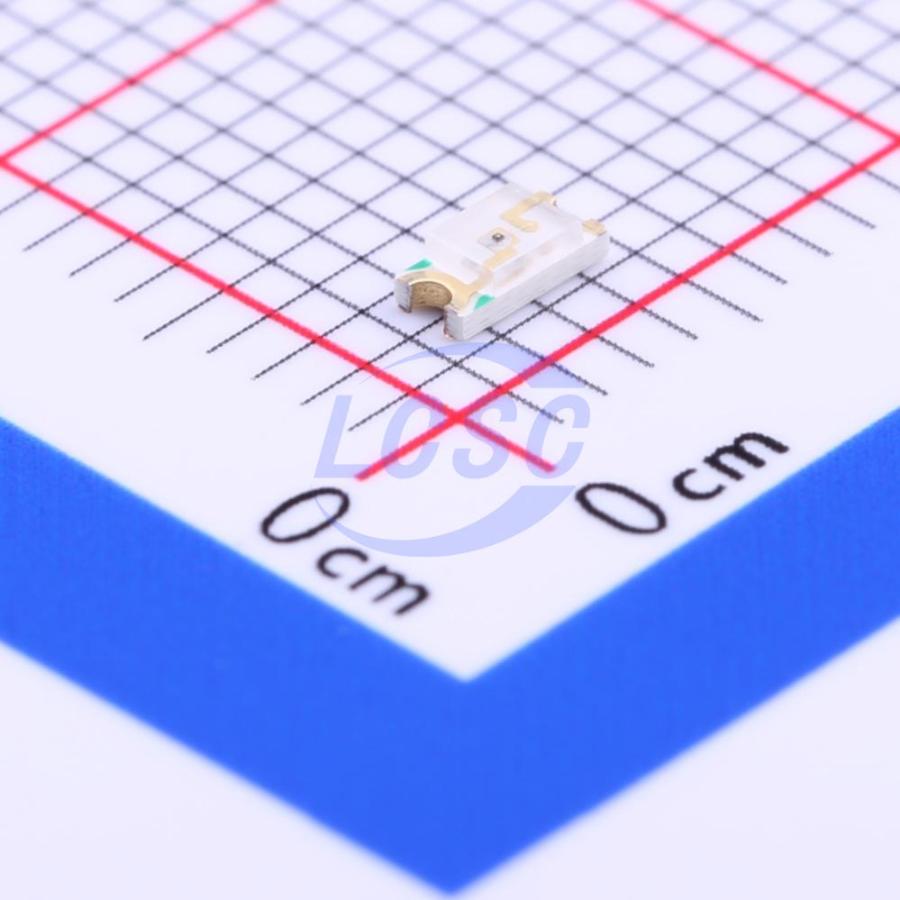

The Everlight Electronics 15-21SURC/S530-A2/TR8 is a discrete SMD LED designed for various applications. It features a 1206 package size with surface mount capability, making it suitable for automated placement and reflow soldering processes.
This LED emits a hyper red light with a typical dominant wavelength of 624nm and a peak wavelength of 632nm. The luminous intensity is rated between 15-38mcd at a typical forward current of 20mA. The viewing angle is broad at 140°.
Key electrical characteristics include a maximum forward voltage of 2.4V and a maximum reverse current of 10μA at 5V. The operating temperature range is -40°C to +85°C, with a storage temperature range of -40°C to +90°C. It can withstand soldering temperatures up to 260°C for 5 seconds.
Applications include backlighting for automotive dashboards and switches, indicators in telecommunication devices like telephones and faxes, and general use in flat backlight applications for LCDs, switches, and symbols. Its compact size and lightweight nature make it ideal for miniature applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical forward current for this LED is 20 mA.
The dominant wavelength is 624 nm.
The viewing angle is 140°.
The operating temperature range is -40°C to +85°C.
The LED is in a 1206 package and is surface mountable.
