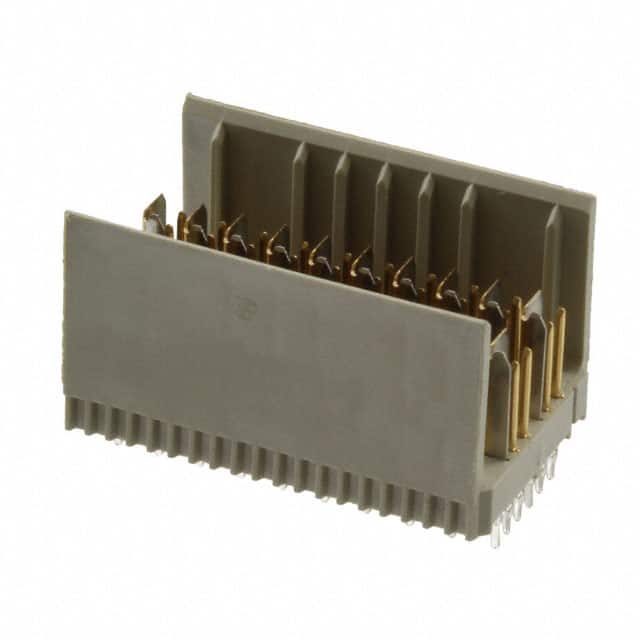

The TE Connectivity 1469025-1 is a high speed backplane header assembly designed for use in controlled impedance environments. It features 60 positions arranged in 4 rows (rows A, B, C, D) with dedicated ground rows (BG and DG), providing 40 signal and 20 ground contacts. The connector uses a 2.50mm pitch and is terminated via press-fit through hole mounting, eliminating the need for soldering.
The header has a 2.5mm tail length and a 25mm mating length, with an overall maximum length of 24.95mm. Contacts and shields are made of phosphor bronze with a gold finish of 30µin (0.76µm) on the mating area. The housing is glass filled polyester rated UL 94V-0. The contact area is lubricated with a Bellcore approved lubricant per GR-1217-CORE.
This part is superseded by TE Connectivity part number 6469025-2. It is suitable for high speed backplane applications in telecom, data communications, and other systems requiring reliable press-fit connections.
| Qty | Low | High |
|---|---|---|
| 4,000+ | $10.60 | $10.60 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 60 positions, with 40 signal and 20 ground contacts.
The pitch is 2.50mm (0.098 inches).
The mounting type is through hole with press-fit termination.
The contact finish is gold with a thickness of 30.0µin (0.76µm).
The housing is glass filled polyester with a UL 94V-0 flammability rating.
The termination style is press-fit.
Yes, this part number is superseded by TE Connectivity 6469025-2 per the manufacturer drawing.
