| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
216 pcs
|
216 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

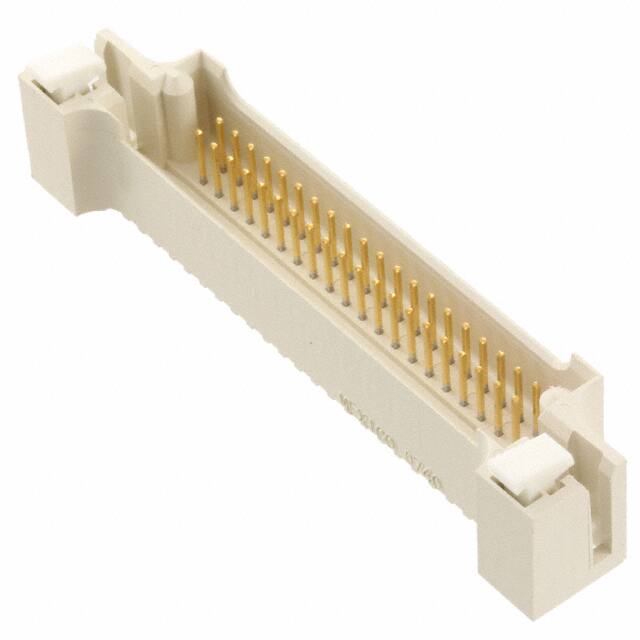

The TE Connectivity 146315-1 is a 40 position, 2 row, shrouded header connector designed for board-to-board or cable applications. It features a 2.54mm pitch and 2.54mm row spacing, making it suitable for standard interconnection layouts.
This through-hole header has male square pin contacts with a tin-lead contact finish of 30.0µin. The connector is rated for a current of 2A and a voltage of 250VAC. It operates over a temperature range of -65°C to 105°C.
The header is fully shrouded with a 4-wall design and uses a latch lock/eject hook fastening system for secure mating. The white thermoplastic, glass filled insulator has a flammability rating of UL94 V-0.
| Qty | Low | High |
|---|---|---|
| 25+ | $3.17 | $3.17 |
| 150+ | $3.09 | $3.09 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.54mm (0.100").
It has 40 positions, all loaded, in 2 rows.
The current rating is 2A.
The voltage rating is 250VAC.
The mounting type is through hole.
The operating temperature range is -65°C to 105°C.
The contact finish is tin-lead with a thickness of 30.0µin (0.76µm).
