| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
19,200 pcs
|
19200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Antenna Type | |
| Applications | |
| Cable Length | |
| Features | |
| Frequency (Center | |
| Frequency Group | |
| Frequency Range | |
| Gain | |
| Height (Max) | |
| Impedance | |
| Length | |
| Mounting Type | |
| Number of Bands | |
| Power | |
| Product Type | |
| RF Family | |
| Return Loss | |
| Termination | |
| Termination Style | |
| Width |

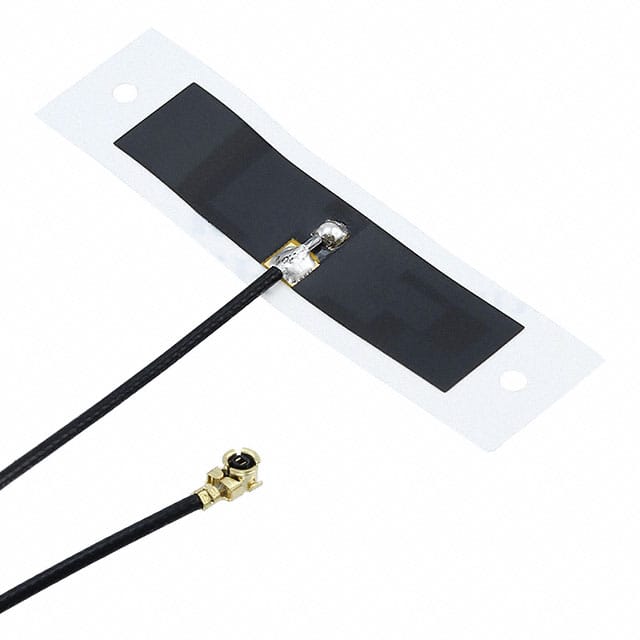

The Molex 1461530100 is a versatile RF antenna designed for dual-band operation across the 2.4GHz and 5GHz frequencies. Its flat patch design and 100mm integrated cable facilitate easy integration into various devices.
This antenna features an adhesive mounting type, simplifying installation on different surfaces. With a gain of 3dBi and 4.5dBi, it offers reliable performance for wireless communication systems. The impedance is rated at 50 Ohms, and it supports applications such as WiFi and Zigbee.
The Molex 1461530100 operates within a frequency range of 2.4GHz to 2.483GHz and 5.15GHz to 5.85GHz. It has a maximum power rating of 2W and a return loss of -10dB. The antenna is constructed with a microcoaxial termination style and has a compact width of 9mm and a height of 0.10mm.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The frequency range is 2.4GHz ~ 2.483GHz and 5.15GHz ~ 5.85GHz.
The gain is 3dBi and 4.5dBi.
It features an adhesive mounting type.
The cable length is 100 mm.
It uses a Microcoaxial termination style.
The standard package quantity is 3200.
