| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
395 pcs
|
395 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Dielectric Withstanding Voltage | |
| Features | |
| Floating Range | |
| Halogen Free | |
| Height Above Board | |
| Insulator Material | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature Range | |
| Pitch | |
| Rated Current (Power) | |
| Rated Current (Signal) | |
| Rated Voltage | |
| SVHC Present | |
| Tape & Reel |

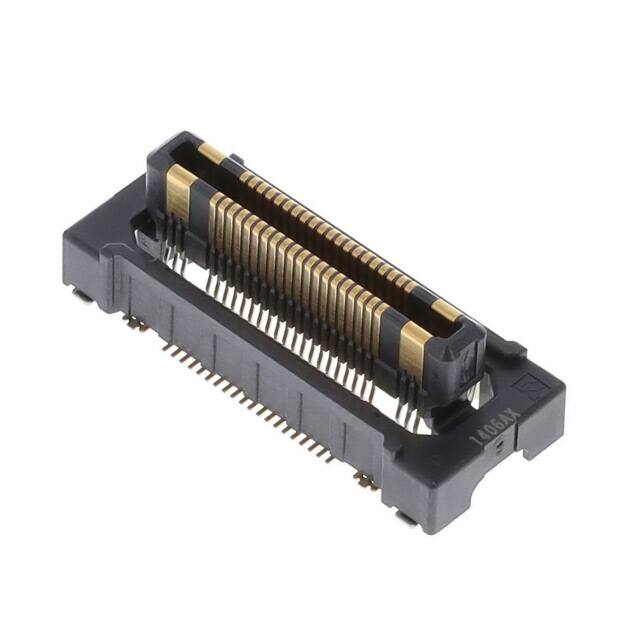

The Kyocera AVX 145656052002829+T is a 52 position, 2-row, 0.5mm pitch floating plug connector from the 5656 series. Designed for board to board parallel stacking applications, this connector features a surface mount mounting type and a mated stacking height of 17.0mm. The floating structure provides a ±1.0mm movable range in both X and Y directions, improving contact reliability against misalignment during mating or vibration.
Electrical ratings include 0.5A per signal contact and 2.0A per power pin, with a rated voltage of 50V DC. The dielectric withstanding voltage is 250Vrms AC. The operating temperature range spans -40°C to +125°C, making it suitable for demanding environments.
Mechanical features include a board guide and solder retention for reliable assembly. Contacts are made of copper alloy with gold finish, and the insulator is heat-resistant plastic. The connector is RoHS compliant and halogen-free.
It has 52 positions arranged in 2 rows.
The pitch is 0.50mm.
The rated current per signal contact is 0.5A.
The rated voltage is 50V DC.
It uses surface mount mounting.
The operating temperature range is -40°C to +125°C.
Yes, it has a floating range of ±1.0mm in the X and Y directions.
