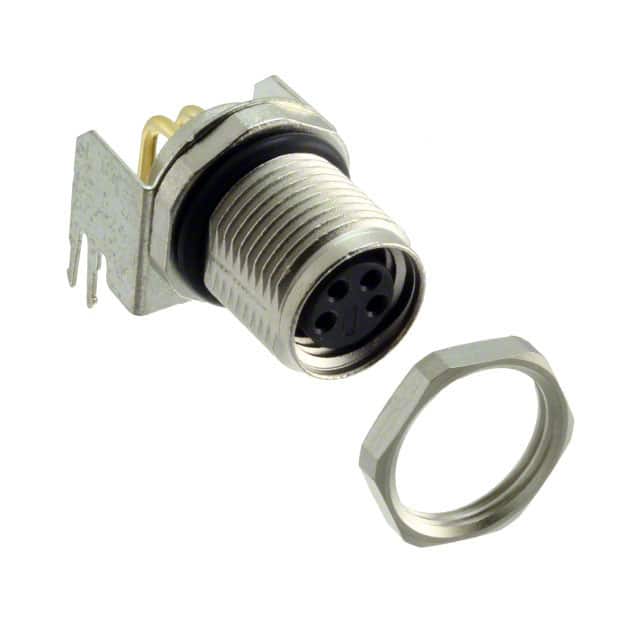

The Phoenix Contact 1456158 is a flush-type circular connector designed for sensor and actuator applications. It features a metal shell made of zinc die cast with a nickel finish, providing robust mechanical protection and EMI shielding. The connector has 4 positions with gold-plated copper alloy contacts for reliable low-resistance connections.
This receptacle is panel mounted using a bulkhead front-side nut, with a right-angle solder termination for easy PCB integration. The M8-4 shell size and A-coding comply with IEC 61076-2-104 standards, ensuring interchangeability with standard M8 connectors. The threaded fastening mechanism provides secure mating.
Electrical ratings include a current rating of 4 A at 40°C and a voltage rating of 50 V AC / 60 V DC. The connector offers IP67 ingress protection, making it suitable for dusty and wet environments. It operates over a temperature range of -25°C to 85°C and meets pollution degree 3 and overvoltage category II requirements.
The connector uses PA 66 for the contact carrier and NBR for sealing material, with a flammability rating of UL94 HB. Torque for installation is specified at 1 Nm. Custom tariff number is 85366990.
M8-4 with 4 positions.
4 A at 40°C, 50 V AC / 60 V DC.
IP67 - dust tight and waterproof.
Panel mount with bulkhead front-side nut, through hole right angle solder termination.
-25°C to 85°C.
Gold finish on copper alloy contacts.
