| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Carrier Material | |
| Contact Finish | |
| Contact Material | |
| Country of Origin | |
| Current Rating | |
| Current Rating (Amps) | |
| Custom Tariff Number | |
| Fastening Type | |
| Features | |
| Flammability Rating | |
| Industrial Grade | |
| Ingress Protection | |
| Insulation Resistance | |
| Material Flammability Rating | |
| Minimum Order Quantity | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Overvoltage Category | |
| Packing Unit | |
| Pollution Degree | |
| Primary Material | |
| Sealing Material | |
| Shell Finish | |
| Shell Material | |
| Shell Size | |
| Standards | |
| Termination | |
| Voltage Rating | |
| Weight |

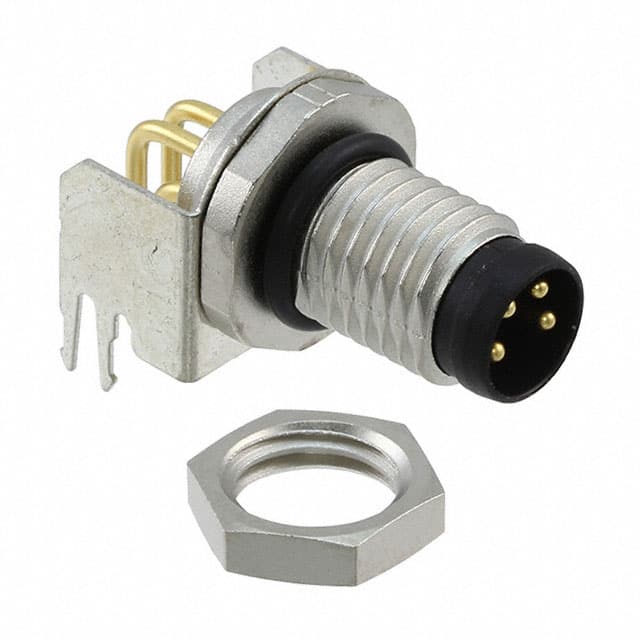

The Phoenix Contact 1456048 (SACC-DSI-M8MS-4CON-L90 SH) is a flush-type M8 circular connector designed for sensor and actuator applications. It features a 4-position male pin configuration with gold-plated contacts for reliable signal transmission. The connector is rated for 4A at 40°C and 50V AC / 60V DC, with an insulation resistance of ≥100 MΩ.
This connector offers IP67 ingress protection, making it suitable for harsh industrial environments. It is designed for rear panel mounting with an M8 threaded fastening and includes a right-angle solder termination. The shell is made of zinc die-cast with a nickel finish, and the contact carrier is PA 66 material with UL94 HB flammability rating.
The connector complies with IEC 61076-2-104 standards for M8 connectors. It is rated for overvoltage category II and pollution degree 3, with an operating temperature range of -25°C to 85°C.
The rated current is 4 A at 40°C.
The rated voltage is 50 V AC and 60 V DC.
The connector has an IP67 ingress protection rating, meaning it is dust-tight and protected against temporary immersion in water.
It has 4 positions.
It is a panel mount connector with through-hole, right-angle solder termination, using a bulkhead front side nut for mounting.
The operating temperature range is -25°C to 85°C.
It complies with IEC 61076-2-104 for M8 connectors.
