| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Length | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Current Rating (Max) | |
| Durability (Mating Cycles) | |
| Features | |
| Flammability Rating | |
| Halogen Free | |
| Length | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature Range | |
| Pitch | |
| SVHC Present | |
| Shielding | |
| Tape & Reel | |
| Voltage Rating (max) |

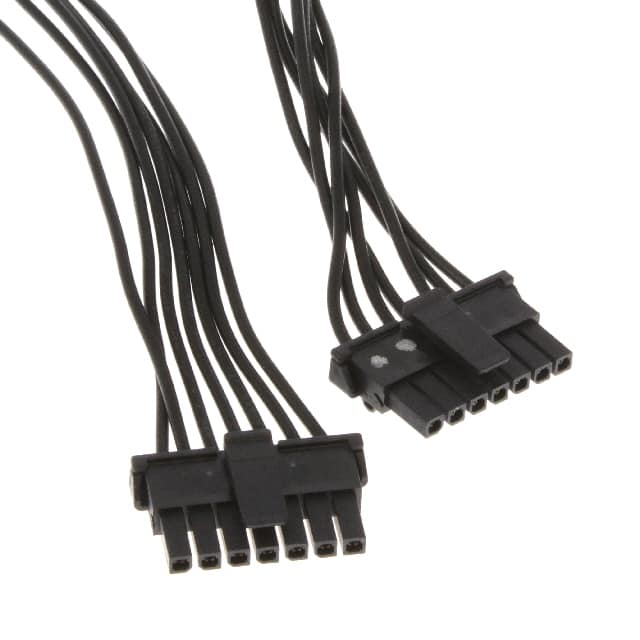

The Molex 1451320710 is a 7-position socket-to-socket Micro-Fit TPA cable assembly designed for off-the-shelf use in prototyping and production. It features a 3.00mm pitch, 1.00m cable length, and black individual wires. The connector includes a latch lock for secure mating and uses crimp termination with tin-plated contacts. Electrically, it is rated for 300V AC/DC and 6.5 to 8.5A per contact, with an operating temperature up to 105°C. The housing meets UL 94V-0 flammability rating and supports 30 mating cycles. This assembly is suitable for applications in consumer appliances, data/computing equipment, telecom/networking devices, and non-sealed automotive applications.
The cable assembly is rated for 300V AC/DC maximum.
The operating temperature range is up to 105°C.
Yes, it is RoHS3 compliant per the datasheet.
The pitch is 3.00mm (0.118 inches).
The current rating is 6.5 to 8.5A per contact.
It has 7 positions in a single row.
The cable length is 1.00 meter (3.28 feet).
