1451320703

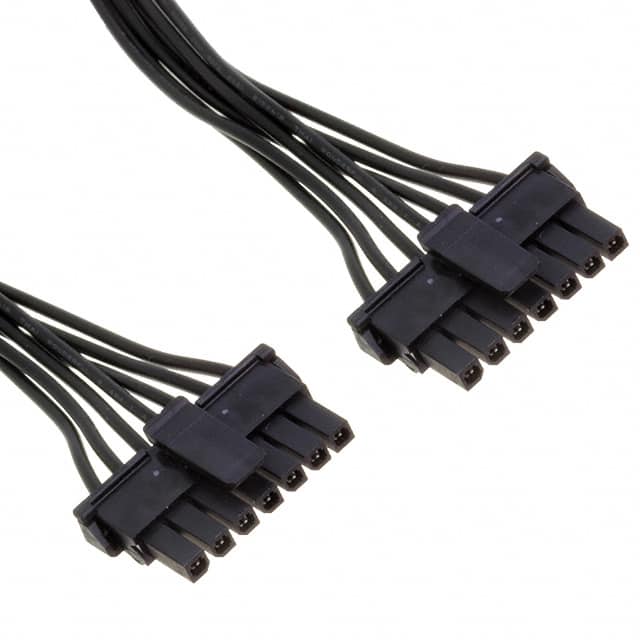

The Molex 1451320703 is a pre-assembled Micro-Fit TPA to Micro-Fit TPA cable assembly designed for off-the-shelf use in prototyping and production. This 7-circuit, single-row assembly features a 3.00mm pitch and is terminated with crimp contacts. The cable length is 300mm, and the contacts are finished with tin for reliable conductivity. The housing is black and unshielded, with a latch lock feature to secure the connection.

This assembly is rated for 300V AC/DC and can carry up to 6.5 to 8.5A per contact, making it suitable for high-density power applications. It operates in temperatures up to 105°C and has a durability of 30 mating cycles. The contact insertion force is 14.7N, retention force is 24.5N, and mating force is 8N per circuit.

The assembly is compliant with RoHS3 and has a UL 94V-0 flammability rating. It is halogen-free (low halogen) and not glow wire compliant. It is designed for use with Micro-Fit 3.0 headers and is suitable for consumer appliances, data/computing, telecom/networking, and non-sealed automotive applications.
