| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Insertion Force | |
| Contact Retention to Housing | |
| Current - Max | |
| Durability | |
| Features | |
| Flammability | |
| Glow Wire | |
| Glow-Wire Compliant | |
| Halogen Free | |
| Length | |
| Mating Force | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| SVHC Present | |
| Shielding | |
| Tape & Reel | |
| Voltage - Max |

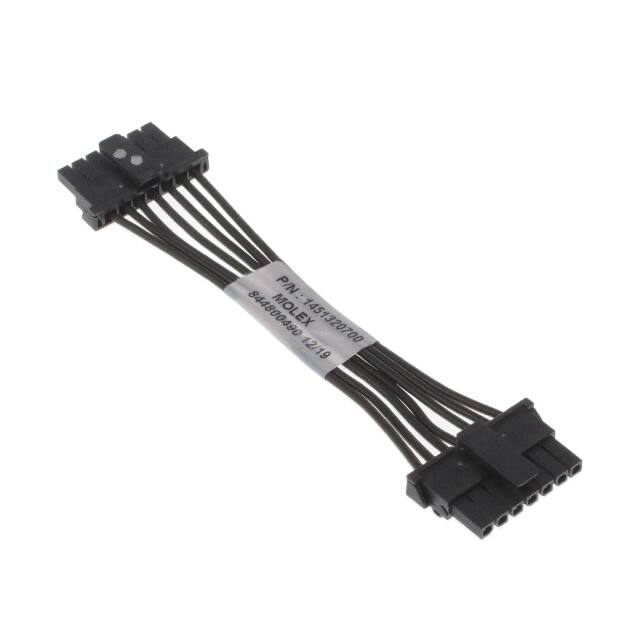

The Molex 1451320700 is a 7-position, single-row Micro-Fit TPA (Terminal Position Assurance) cable assembly designed for socket-to-socket connections. It features a 3.00mm pitch and is rated for a maximum voltage of 300V AC/DC and a current range of 6.5 to 8.5A. The assembly uses crimp termination and tin-plated contacts with a thickness of 40.0µin (1.02µm).
Mechanically, the assembly includes a latch lock feature for secure mating and is unshielded. The housing is black and made of UL 94V-0 rated material. The operating temperature is up to 105°C, and the assembly is rated for 30 mating cycles. Contact insertion force is 14.7N max per contact, and contact retention to housing is 24.5N min.
This cable assembly is RoHS3 compliant (2011/65/EU) and is classified as low halogen. It is not glow wire compliant. The assembly is intended for use with Micro-Fit 3.0 connectors and headers, suitable for prototyping and production in consumer, data computing, telecommunications, and non-sealed automotive applications.
The maximum operating voltage is 300V AC/DC.
The operating temperature is up to 105°C.
Yes, it is RoHS3 compliant per 2011/65/EU.
The current rating is 6.5 to 8.5A.
It uses crimp termination.
Yes, it features a latch lock for secure mating.
The contact finish is tin with a thickness of 40.0µin (1.02µm).
