1451320610

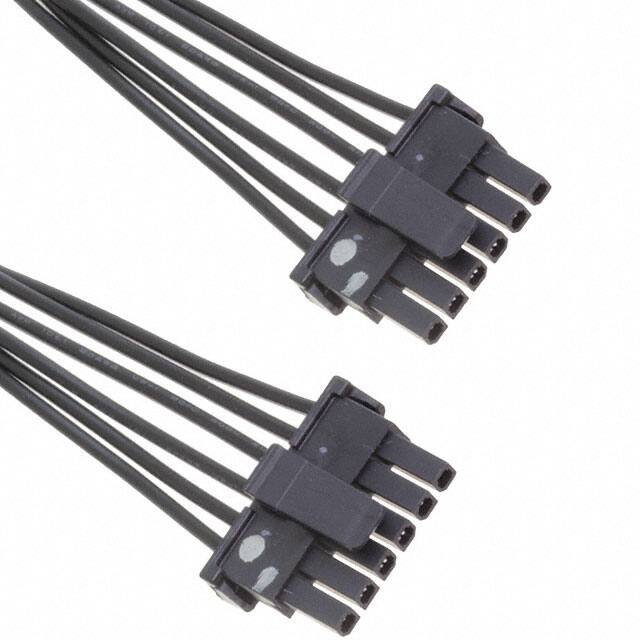

The Molex 1451320610 is a Micro-Fit TPA cable assembly designed for off-the-shelf use in prototyping and production. It features a 6-position socket to socket configuration with a 3.00mm pitch, providing a high-density, reliable connection. The assembly is 1.00m in length and unshielded, with a latch lock for secure mating.

Key electrical specifications include a voltage rating of 300V AC/DC and a current rating of 6.5 to 8.5A per circuit. The operating temperature range is up to 105°C, and the housing is made of UL 94V-0 rated material. Contacts are tin-plated with a thickness of 40µin (1.02µm), and termination is via crimp using UL 1007 or UL1061 discrete wires.

This cable assembly is suitable for a variety of applications including consumer appliances, data/computing workstations and servers, telecommunications networking equipment, and automotive non-sealed interior devices. It is assembled in ISO/TS16949-certified facilities, ensuring high quality and compliance with automotive industry standards.

The part is RoHS3 compliant and has low halogen content. It is not glow wire compliant. The contact retention force is 24.5N, mating force is 8N per circuit, and durability is rated for 30 cycles.
