| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Insertion Force (max) | |
| Contact Retention to Housing (min) | |
| Current - Max | |
| Durability (max) | |
| Features | |
| Flammability | |
| Glow-Wire Compliant | |
| Halogen Free | |
| Industrial Grade | |
| Length | |
| Mating Force (max) | |
| Medical Grade | |
| Military Grade | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shielding | |
| Tape & Reel | |
| Voltage - Max |

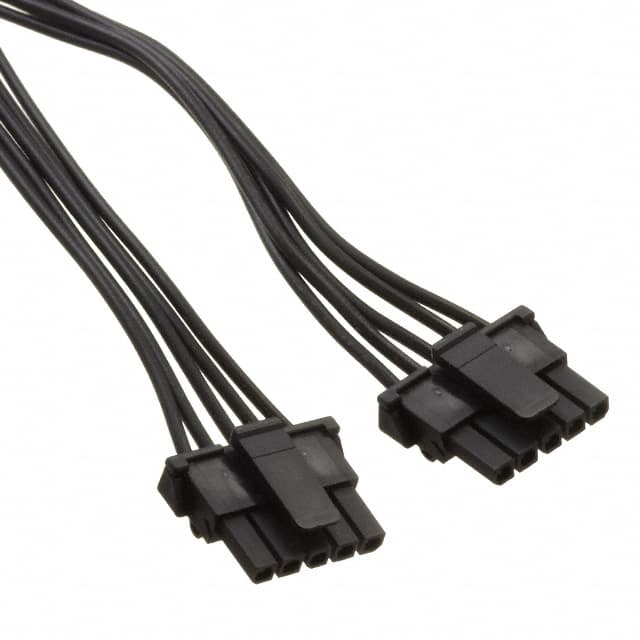

The Molex 1451320510 is a Micro-Fit TPA cable assembly featuring 5 positions in a single row with a 3.00mm pitch. It is designed as a socket-to-socket configuration with crimp termination and tin-plated contacts (40µin). The cable length is 1.00m (3.28'), and the assembly is unshielded with a black individual wire color. A latch lock feature ensures secure mating.
This assembly is rated for 300V AC/DC and a maximum current of 6.5 to 8.5A. It is manufactured to UL 94V-0 flammability standards and operates up to 105°C. The datasheet confirms RoHS compliance and low halogen content, while glow wire compliance is not applicable. The assembly is designed for use in consumer, home appliance, data computing, telecommunications, and non-sealed automotive applications.
The Micro-Fit TPA series includes Terminal Position Assurance (TPA) receptacles for reliable contact retention. The assembly is built with UL 1007/1061 discrete wires and is suitable for prototyping and production programs. Mates with Micro-Fit 3.0 headers and connectors.
300V AC/DC.
Up to 105°C.
Yes, RoHS3 compliant.
6.5 to 8.5A maximum.
3.00mm (0.118").
5 positions.
1.00m (3.28').
