| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Insertion Force | |
| Contact Retention to Housing | |
| Current - Max | |
| Features | |
| Flammability | |
| Glow-Wire Compliant | |
| Halogen Free | |
| Industrial Grade | |
| Length | |
| Mating Cycles | |
| Mating Force | |
| Military Grade | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| SVHC Present | |
| Shielding | |
| Tape & Reel | |
| Voltage - Max |

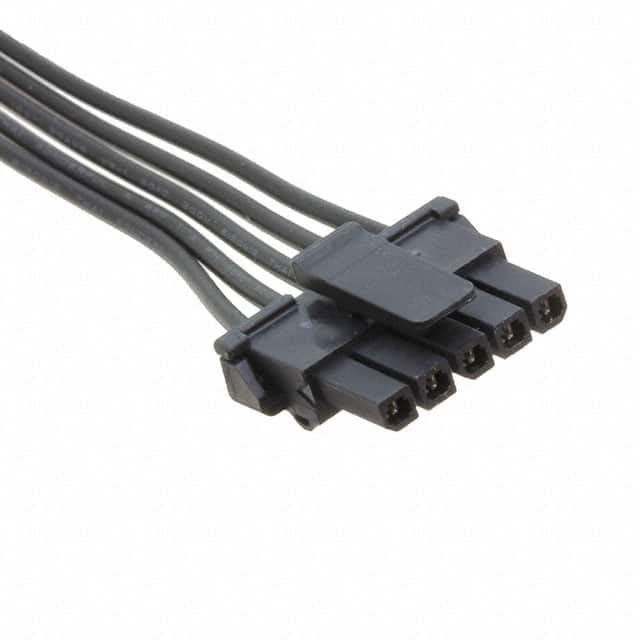

The Molex 1451320501 is a standard Micro-Fit TPA off-the-shelf cable assembly designed for prototyping and production applications. It features a 5-circuit, single-row configuration with a 3.00mm pitch and 150mm length, terminated with socket contacts on both ends (socket to socket). The assembly uses crimp termination with tin-plated contacts and includes a latch lock for secure mating.
Electrical ratings include 300V AC/DC maximum voltage and 6.5 to 8.5A current rating. The operating temperature range is up to 105°C, with a flammability rating of UL 94V-0. The cable is unshielded and uses UL 1007 or UL 1061 discrete wires depending on configuration.
This assembly is suitable for use in consumer appliances, data/computing equipment, telecommunications/networking hardware, and non-sealed automotive interior applications. It is RoHS3 compliant, halogen free (low halogen), and not glow wire compliant. The connector mates with Micro-Fit 3.0 headers and is designed for high-density, lower power connections.
300V AC/DC.
6.5 to 8.5A.
Up to 105°C.
Yes, RoHS3 compliant.
3.00mm.
5 positions.
150mm.
