| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Insertion Force | |
| Contact_Retention_Force | |
| Current Rating | |
| Features | |
| Flammability | |
| Glow-Wire Compliant | |
| Halogen Free | |
| Industrial Grade | |
| Length | |
| Mating Cycles | |
| Mating Force | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| SVHC Present | |
| Shielding | |
| Tape & Reel | |
| Voltage Rating |

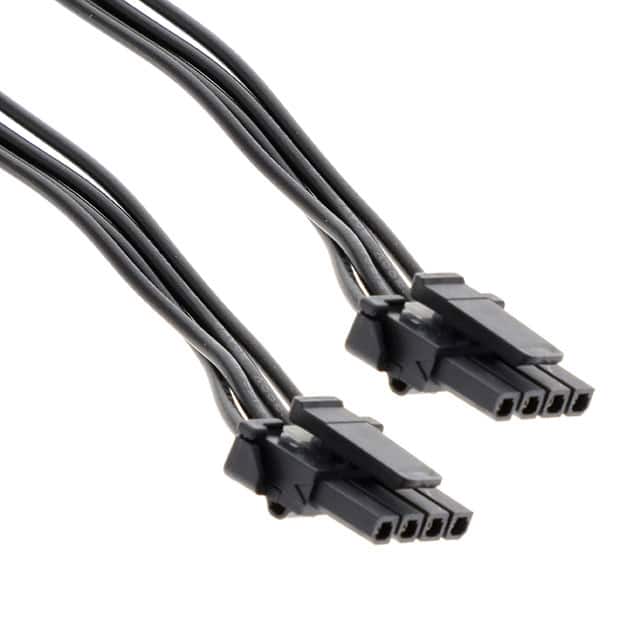

The Molex 1451320410 is a 4-circuit rectangular cable assembly from the Micro-Fit 3.0 series. It features a socket-to-socket configuration with a 3.00mm pitch and a 1.00m cable length. The cable is unshielded and terminated via crimp contacts with a tin finish (40.0µin). A latch lock secures mating.
This assembly supports a voltage rating of 300V AC/DC and a current rating of 6.5 to 8.5A, with an operating temperature up to 105°C. The housing is rated UL 94V-0 for flammability and is compliant with RoHS3 (2011/65/EU).
Mechanical specifications include a mating cycle durability of 30 cycles, a contact insertion force of 14.7N per contact, a contact retention force of 24.5N, and a mating force of 8N per circuit. The cable is black and uses a single-row arrangement.
This assembly is designed for use with Micro-Fit 3.0 headers and is suitable for prototyping and production in applications such as consumer appliances, data/computing equipment, telecommunications/networking, and non-sealed automotive uses.
The operating voltage rating is 300V AC/DC.
The maximum operating temperature is 105°C.
Yes, it meets 2011/65/EU RoHS compliance as stated in the datasheet.
The current rating is 6.5 to 8.5A.
The cable termination is crimp.
Yes, it features a latch lock.
The housing is rated UL 94V-0.
