| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Insertion Force (max) | |
| Contact Retention to Housing (min) | |
| Current - Max | |
| Durability | |
| Features | |
| Flammability Rating | |
| Glow-Wire Compliant | |
| Halogen Free | |
| Length | |
| Mating Force (max) | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Packaging Type | |
| Pitch | |
| SVHC Present | |
| Shielding | |
| Tape & Reel | |
| Voltage - Max |

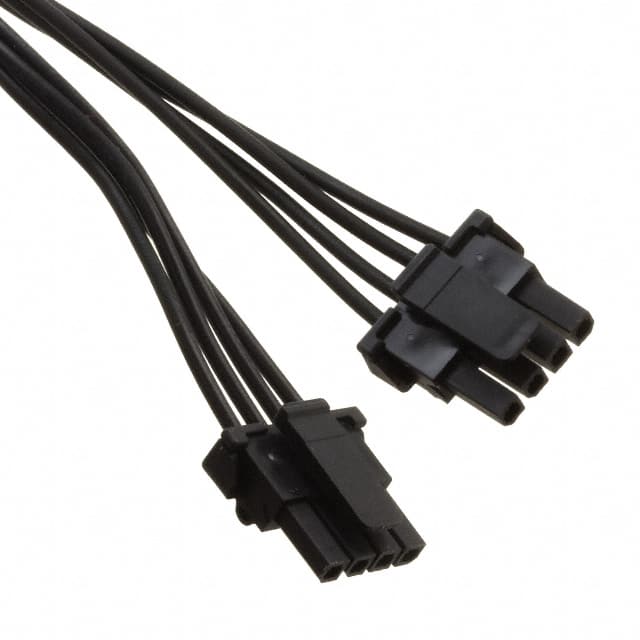

The Molex 1451320401 is a Micro-Fit TPA (Terminal Position Assurance) cable assembly designed for high-density, lower-power connections in a variety of applications. This assembly features a 4-position, single-row configuration with socket connectors on both ends, a 3.00mm pitch, and a 150mm cable length.
Electrical specifications include a maximum voltage rating of 300V AC/DC and a current rating of 6.5 to 8.5A. The contacts are crimp-terminated with a tin finish (40.0µin thickness). The housing is black, unshielded, and features a latch lock for secure mating. The assembly is rated for 30 mating cycles and has a maximum mating force of 8N per circuit.
The cable assembly is constructed with UL 1007 discrete wires (TPA versions) and is assembled in ISO/TS16949-certified facilities. It is RoHS compliant and has a flammability rating of UL 94V-0. The operating temperature is up to 105°C for the TPA variant.
The maximum voltage rating is 300V AC/DC.
The current rating is 6.5 to 8.5A.
The pitch is 3.00mm and the cable length is 150mm.
Yes, it is RoHS3 compliant per the datasheet.
The operating temperature is up to 105°C for the TPA variant.
Both ends have socket connectors (socket to socket).
The housing has a UL 94V-0 flammability rating.
