| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Retention to Housing | |
| Current - Max | |
| Features | |
| Flammability Rating | |
| Halogen Free | |
| Length | |
| Mating Cycles | |
| Mating Force | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shielding | |
| Tape & Reel | |
| Voltage - Max |

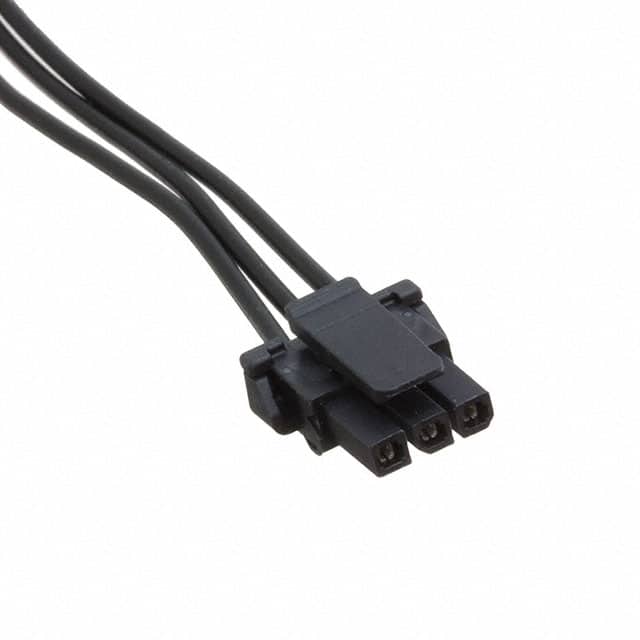

The Molex 1451320303 is a factory-assembled Micro-Fit 3.0 TPA cable assembly designed for prototyping and production. It features 3 circuits in a single-row configuration with a 3.00mm pitch. The cable length is 300mm with unshielded discrete wires terminated via crimp connections to socket housings on both ends.
Electrical ratings include 300V AC/DC maximum voltage and 6.5A per contact current rating. The operating temperature range is up to 105°C for the TPA variant. Contacts are finished with 40.0µin (1.02µm) of tin and provide a minimum contact retention force of 24.5N. The connector is rated for 30 mating cycles.
The assembly is unshielded and features a latch lock for secure mating to Micro-Fit 3.0 headers. It is RoHS3 compliant and halogen-free (low halogen). The housing material meets UL 94V-0 flammability rating.
300V AC/DC.
6.5A per contact for the TPA variant.
Up to 105°C for the single-row TPA variant.
Yes, it is RoHS3 compliant (2011/65/EU).
