| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Insertion Force (max) | |
| Contact Retention to Housing (min) | |
| Current Rating (Max) | |
| Durability | |
| Features | |
| Flammability Rating | |
| Glow-Wire Compliant | |
| Halogen Free | |
| Industrial Grade | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Mating Force (max) | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Packaging Type | |
| Pitch | |
| Shielding | |
| Tape & Reel | |
| Voltage Rating (max) | |
| Wire Gauge |

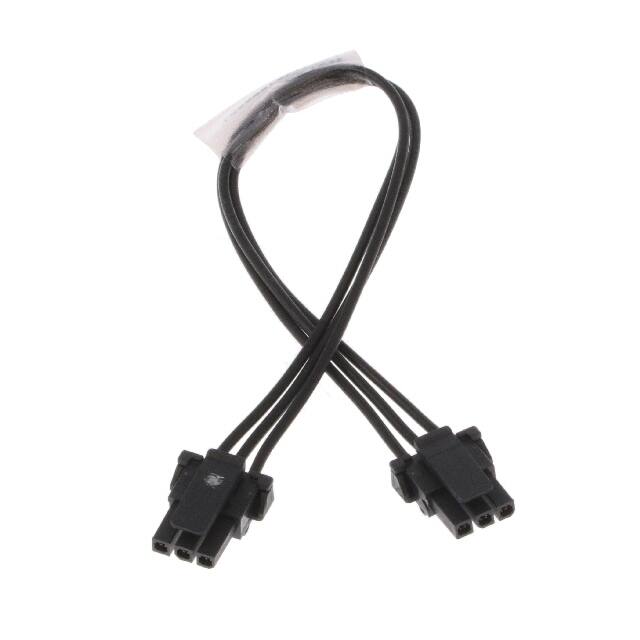

The Molex 1451320301 is a Micro-Fit 3.0 TPA (Terminal Position Assurance) cable assembly offering a socket-to-socket configuration with 3 circuits on a single row. With a 3.00mm pitch, it provides a compact, high-density connection capable of handling up to 8.5A per contact and 300V AC/DC. The 150mm cable length and black individual color simplify identification and routing.
The assembly features crimp termination with tin-plated contacts (1.02µm thickness), ensuring reliable electrical performance. A latch lock mechanism secures mating, and the housing is rated UL 94V-0 for flammability. Operating temperature reaches up to 105°C, with a durability of 30 mating cycles.
Typical applications include consumer appliances, power supplies, servers, and non-sealed automotive electronics. The assembly is RoHS3 compliant and packaged in a bag. For detailed mechanical drawings and additional specifications, refer to the manufacturer datasheet.
300V AC/DC.
Bag.
Up to 105°C.
Yes, RoHS3 compliant per datasheet.
6.5 to 8.5A.
Tin, 1.02µm thickness.
