| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Retention to Housing (min) | |
| Current - Max | |
| Durability | |
| Features | |
| Flammability | |
| Halogen Free | |
| Industrial Grade | |
| Length | |
| Mating Force (max) | |
| Medical Grade | |
| Military Grade | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Packaging Type | |
| Pitch | |
| SVHC Present | |
| Shielding | |
| Tape & Reel | |
| Voltage - Max |

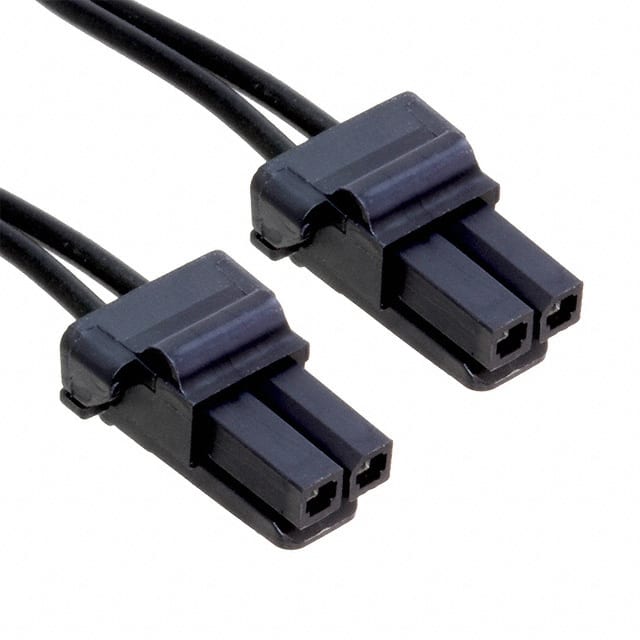

The Molex 1451320200 is a pre-assembled Micro-Fit TPA cable assembly designed for off-the-shelf use in prototyping and production. It features a socket-to-socket configuration with 2 positions in a single row, a 3.00mm pitch, and an overall length of 75mm. The cable uses crimp termination and tin-plated contacts with a thickness of 40.0µin (1.02µm).
Electrically, the assembly is rated for a maximum voltage of 300V AC/DC and a current range of 6.5 to 8.5A. The housing is black, unshielded, and includes a latch lock feature for secure mating. The operating temperature is up to 105°C for the TPA variant, and the housing material meets UL 94V-0 flammability rating.
This assembly is part of the Micro-Fit TPA family, designed for applications requiring a high-density, lower-power connection with reduced terminal back-out. It mates with Micro-Fit 3.0 headers and is assembled in ISO/TS16949-certified facilities.
300V AC/DC.
6.5 to 8.5A.
Up to 105°C for the TPA variant.
Yes, it is RoHS3 compliant per the datasheet (2011/65/EU).
3.00mm pitch and 75mm length.
Crimp termination.
Tin with a thickness of 40.0µin (1.02µm).
