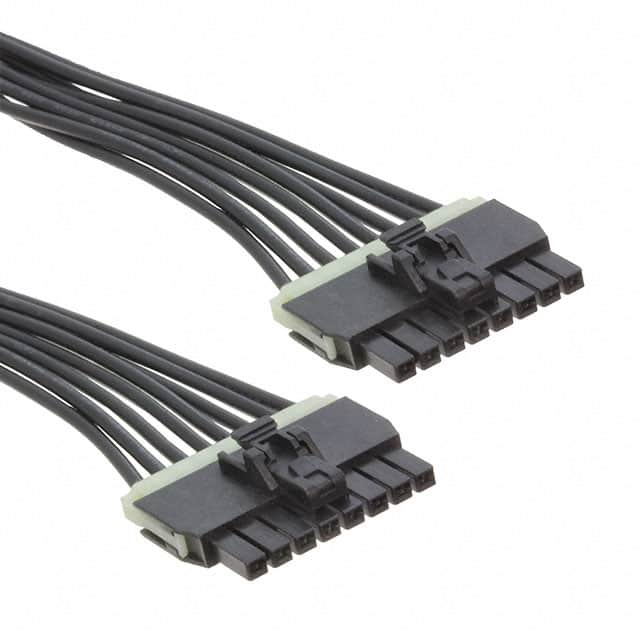

The Molex 1451300803 is a Nano-Fit off-the-shelf (OTS) discrete wire cable assembly. It features a socket to socket connector configuration with 8 circuits arranged in a single row on a 2.50mm pitch. The cable has a length of 300.00mm (0.984') and is terminated using crimp contacts. The contacts are finished with 100.0µin (2.54µm) of tin.
This unshielded cable assembly includes a latch lock and polarizing key for secure mating and proper alignment. The housing is black. The Nano-Fit series is designed for applications requiring a compact, high-density connection with a current rating up to 6.5A per circuit.
The assembly uses individual wires and is suitable for prototyping and production applications. The crimp termination process allows for reliable wire-to-connector connections. Commonly used in power and signal applications within space-constrained environments.
The connector type is socket to socket with 8 positions in a single row.
The pitch is 2.50mm and the cable length is 300.00mm (0.984').
The contact finish is tin with a thickness of 100.0µin (2.54µm) and the cable termination is crimp.
The current rating is 6.5A, inferred from the Nano-Fit TPA Cable Assembly datasheet.
The component is marked as RoHS3 compliant, though this status is unverified.
The MSL is rated as 1 (unlimited), though unverified.
