| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Type | |
| Fastening Type | |
| Housing Color | |
| Ingress Protection | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Orientation | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Type |

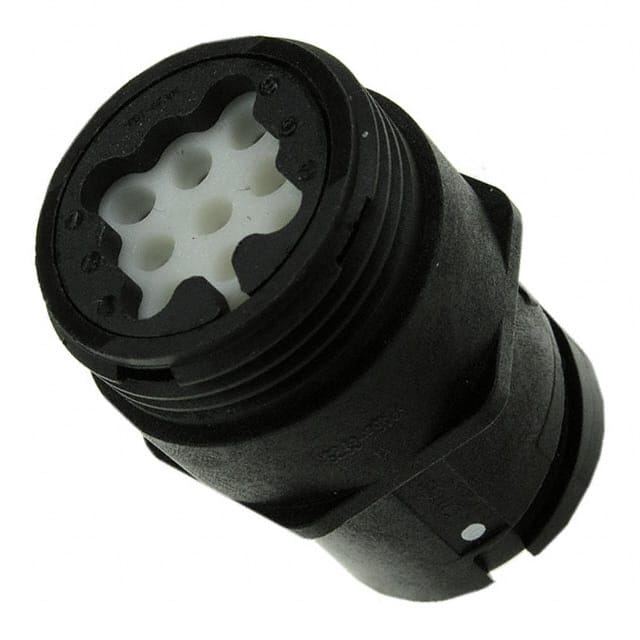

The TE Connectivity 1445825-3 is a circular connector housing designed as a receptacle for male pin contacts. It features 9 positions with a shell size of 11-9. The housing is constructed from thermoplastic material in black and utilizes a bayonet lock for secure mating. It is unshielded and offers an IP67 ingress protection rating, ensuring dust tight and waterproof performance. The housing is rated UL94 V-0 for flammability. It is designed for free hanging (in-line) mounting and accepts crimp contacts. The orientation is A. This housing is RoHS3 compliant and REACH unaffected. It is suitable for applications requiring a reliable and environmentally sealed connector interface.
| Qty | Low | High |
|---|---|---|
| 1+ | $13.42 | $13.42 |
| 10+ | $11.40 | $11.40 |
| 25+ | $10.69 | $10.69 |
| 50+ | $10.18 | $10.18 |
| 100+ | $9.69 | $9.69 |
| 300+ | $8.97 | $8.97 |
| 500+ | $8.65 | $8.65 |
| 1,000+ | $8.24 | $8.24 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
9 positions.
Shell size 11-9.
Bayonet lock.
IP67 - Dust Tight, Waterproof.
Free hanging (in-line).
Thermoplastic.
No, it is unshielded.
