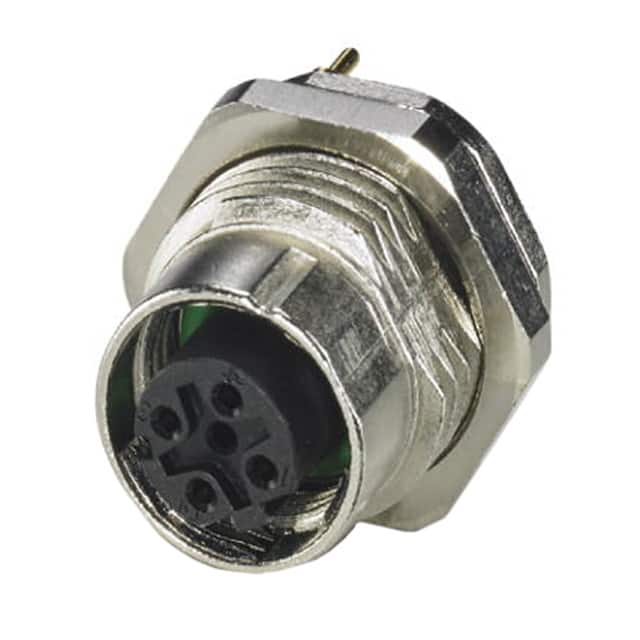

1441875 Phoenix Contact 1441875 is a M12-4 circular connector receptacle with 4 female sockets, gold plated contacts, panel mount with solder termination, and IP67 protection.
Mfr Part #:

1441875

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1441875 is a M12-4 circular connector receptacle with 4 female sockets, gold plated contacts, panel mount with solder termination, and IP67 protection.
✓ Total Stock: 1 pcs

1441875 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1441875 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Connector Type
Contact Finish
Current Rating
Current Rating (Amps)
Fastening Type
Ingress Protection
Material Flammability Rating
Mounting Feature
Mounting Type
Number of Positions
Operating Temperature
Orientation
Primary Material
Shell Finish
Shell Material
Shell Size
Shielding
Termination
Voltage Rating
View Similar Products (0)

1441875 Description

Short technical summary and product information.

The Phoenix Contact 1441875 is a M12-4 circular connector receptacle designed for reliable signal and power connections in industrial environments. It features 4 female socket contacts with gold plating for corrosion resistance and reliable conductivity.



This receptacle offers a panel mount, through hole configuration with solder termination, and a bulkhead front side nut mounting feature for secure installation. The metal shell is zinc die cast with a nickel finish, providing durability and shielding against electromagnetic interference.



Rated for 4 A current and 250 V, the connector operates over a temperature range of -25°C to 85°C. It is IP67 rated for dust tight and waterproof protection, making it suitable for harsh industrial applications. The push-twist fastening type ensures quick and secure mating.

1441875 Quick Information

Product Type: Circular Connector Receptacle
Series: SACC-DSI-M12FSD- 4CON-M16 SH
Canonical Name: Phoenix Contact 1441875 M12-4 Circular Connector Receptacle, Female Sockets, Panel Mount, Solder, Gold Contacts
Subcategory: M12 Connectors

1441875 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1441875 Features

  • M12-4 shell size with 4 female socket contacts.
  • Gold plated contacts for reliable conductivity.
  • IP67 rated dust tight and waterproof.
  • Panel mount with solder termination.
  • Shielded metal shell with nickel finish.

1441875 Applications

  • Used in industrial automation and control systems.
  • Ideal for sensor and actuator connections.
  • Suitable for harsh environment field wiring.
  • Common in factory floor networking applications.

1441875 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the Phoenix Contact 1441875 connector have?

It has 4 positions (female sockets).

What is the current rating of the 1441875 connector?

The current rating is 4 A.

What is the voltage rating of the 1441875 connector?

The voltage rating is 250 V.

What mounting type does the 1441875 use?

It uses panel mount with through hole and solder termination, with a bulkhead front side nut mounting feature.

What is the ingress protection rating of the 1441875?

It is IP67 rated, meaning it is dust tight and waterproof.

What is the operating temperature range for the 1441875?

The operating temperature range is -25°C to 85°C.

What is the shell material and finish of the 1441875?

The shell is zinc die cast with a nickel finish.
