| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Coding | |
| Color | |
| Connector Type | |
| Contact Carrier Material | |
| Contact Finish | |
| Contact Material | |
| Contact Plating | |
| Contact Resistance | |
| Contact Surface Material | |
| Current Rating | |
| Current Rating (Amps) | |
| Custom Tariff Number | |
| Fastening Type | |
| Industrial Grade | |
| Ingress Protection | |
| Insulation Resistance | |
| Lead Style | |
| Length of solder pin | |
| Material Flammability Rating | |
| Minimum Order Quantity | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Packaging Type | |
| Pollution Degree | |
| Primary Material | |
| SVHC Present | |
| Sealing Material | |
| Shell Finish | |
| Shell Material | |
| Shell Size | |
| Standards/Regulations | |
| Surge Voltage Category | |
| Termination | |
| Unit Weight | |
| Voltage Rating |

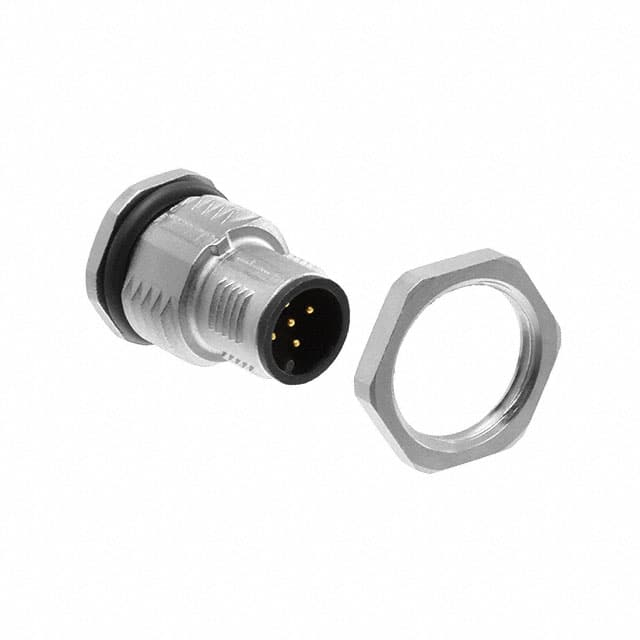

The Phoenix Contact 1441765 is a panel feed-through plug designed for M12 circular connector systems. It features 5 male pins with gold-plated contacts for reliable low-resistance connections. The connector is A-coded, ensuring proper mating alignment in standard sensor/actuator applications.
Electrical ratings include a current rating of 4 A at 40°C and a voltage rating of 60 V. Contact resistance is ≤3 mΩ, and insulation resistance is ≥100 MΩ. The connector is rated IP67 for dust-tight and waterproof protection, suitable for harsh industrial environments. Operating temperature range is -25°C to 85°C.
Mechanical construction includes a zinc die-cast shell with nickel plating, a PA66 contact carrier, and NBR sealing material. The mounting type is panel mount with a bulkhead front side nut and M16 thread. Termination is via straight solder pins with a length of 6 mm. The fastening type is push-twist (SPEEDCON) for quick installation. The material flammability rating is UL 94 V-0.
5 positions.
4 A at 40°C.
60 V.
Panel mount with bulkhead front side nut, M16 thread.
IP67.
A-coded (standard).
Push-twist (SPEEDCON).
