| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
940 pcs
|
940 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Ingress Protection | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| SVHC Present | |
| Shell Finish | |
| Shell Material | |
| Shielding | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

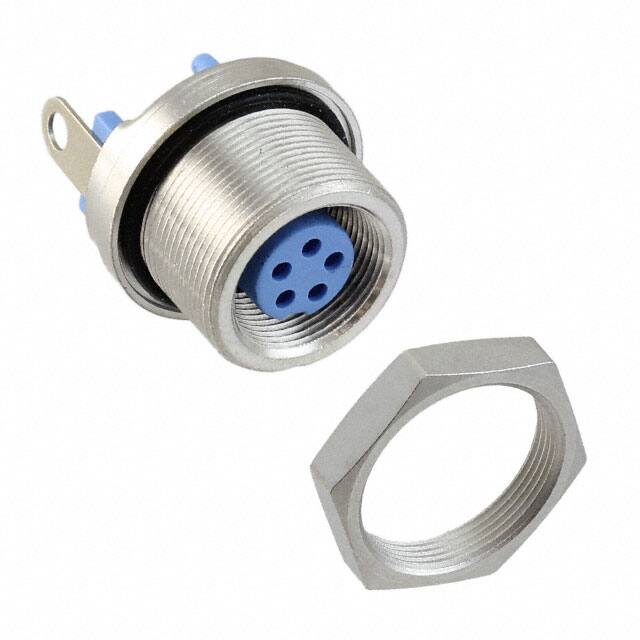

The TE Connectivity 1437720-3 is a circular connector receptacle designed for reliable signal and power connections in demanding environments. It features 5 female socket contacts arranged in a keyed orientation to prevent mismating. The connector is panel mounted using a bulkhead front side nut, providing secure installation.
Constructed with a brass shell and a Tribor finish, the connector offers robust mechanical strength and corrosion resistance. It is fully shielded to protect against electromagnetic interference. The solder cup termination allows for easy field wiring.
Electrical ratings include a current capacity of 3A and a voltage rating of 60VAC. The operating temperature range spans from -40°C to 85°C, making it suitable for industrial and outdoor applications. The connector achieves IP65 ingress protection, ensuring dust tightness and water resistance.
The insulator material carries a UL94 V-2 flammability rating, adding a layer of safety. This connector is ideal for applications requiring a compact, durable, and environmentally sealed circular interconnect.
The current rating is 3A.
The voltage rating is 60VAC.
It has 5 positions.
Panel mount with bulkhead front side nut.
IP65 - dust tight and water resistant.
-40°C to 85°C.
Solder cup termination.
