| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7 pcs
|
7 pcs | On Request | 1 | 4 | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Opening | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Ingress Protection | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| Shell Finish | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Termination | |
| Voltage Rating |

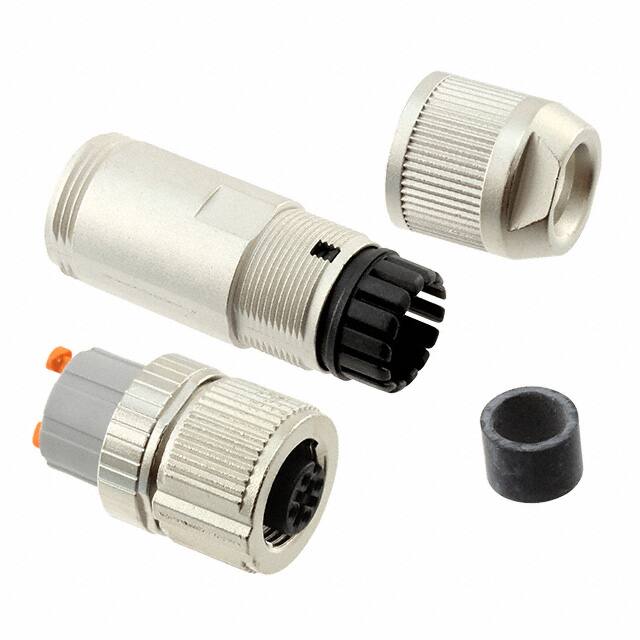

The Phoenix Contact 1432745 is a M12-4 circular connector receptacle with 4 female socket contacts. It features a spring-cage termination method for quick and reliable wire connections without special tools. The connector uses a push-twist fastening system for secure mating and is shielded to protect against electromagnetic interference. The metal shell is zinc die cast with a nickel finish, providing durability and corrosion resistance. It is rated for 48VAC/60VDC and 4A, with gold-plated contacts for low resistance and high cycle life. The cable opening accommodates 4.00mm to 8.00mm diameter cables. The connector is rated IP65/IP67 for dust-tight and water-resistant/proof operation, suitable for industrial environments. The operating temperature range is -40°C to 85°C, and the insulator material meets UL94 V-0 flammability rating.
Receptacle, Female Sockets with 4 positions.
4A current rating, 48VAC/60VDC voltage rating.
Free hanging (in-line) mounting with spring-cage termination.
IP65/IP67 - dust tight, water resistant, waterproof.
-40°C to 85°C.
