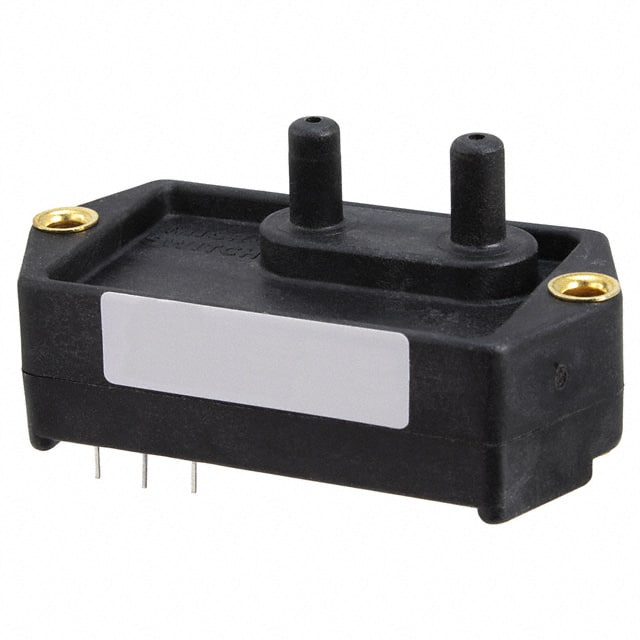

The Honeywell 142PC01D is a differential pressure sensor designed for board mounting. It operates within a voltage range of 7V to 16V and provides an analog output from 1V to 6V.
This sensor has an operating pressure range of 1 PSI (6.89kPa) and a maximum pressure of 20 PSI (137.9kPa), with an accuracy of ±0.75%. The port size is 0.2" (5mm) tube, dual, with a barbless port style. It features amplified output and temperature compensation.
The 142PC01D has an operating temperature range of -40°C to 85°C. It is packaged in a 3-SIP module and utilizes a through-hole mounting type with PC pin termination.
This sensor is suitable for applications requiring precise pressure monitoring within its specified ranges.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating pressure range is 1 PSI (6.89kPa).
The output voltage range is 1 V to 6 V.
The operating voltage is between 7V and 16V.
The operating temperature range is -40°C to 85°C.
The sensor is in a 3-SIP Module package.
It is mounted using the through hole method.
The accuracy is ±0.75%.
